Proven On The Ground

Projects &
Installations

From chemical earthing pits in chemical processing plants to ESE lightning protection systems on high-rise structures — Konnark's installation teams have delivered engineered earthing and lightning protection solutions across industrial, commercial, and infrastructure facilities throughout India.

Category

Industrial Earthing Projects

Deep-bore chemical earthing systems, GI strip networks, and comprehensive earthing solutions engineered to IS 3043 standards for manufacturing plants, MIDC facilities, and industrial campuses.

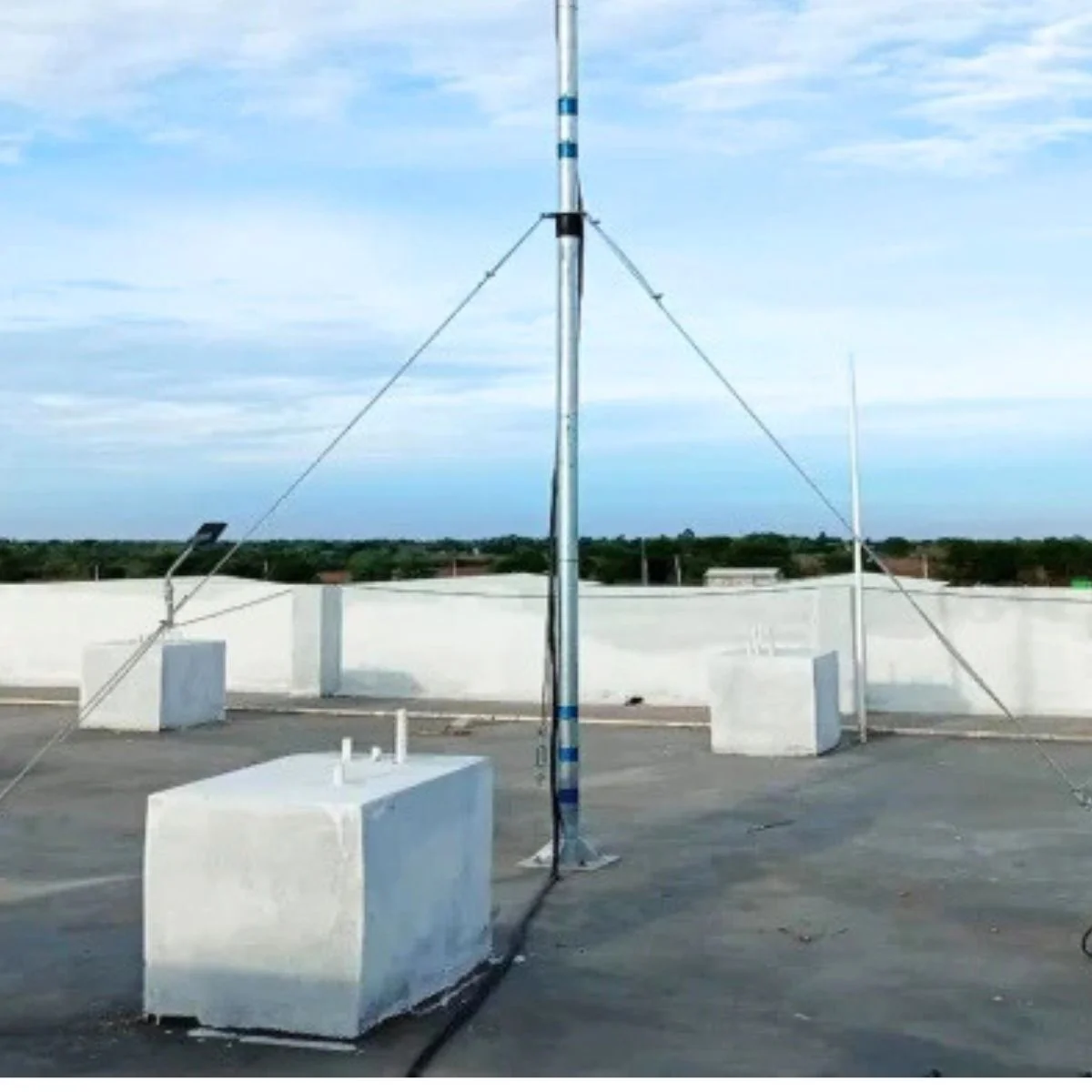

Industrial earthing installation at Aeroflex Industries, Taloja MIDC
Industrial Earthing Completed
Industrial Earthing

Aeroflex Industries — Multi-Pit Earthing Network

Taloja MIDC, Maharashtra Industrial Manufacturing
Chemical Earthing Copper Bonded Electrode Backfill Compound

Multi-pit chemical earthing network engineered for Aeroflex Industries, Taloja MIDC. Copper-bonded electrodes with backfill compound; resistance values verified per IS 3043 with calibrated megger and full test certificates issued at commissioning.

Request Quote

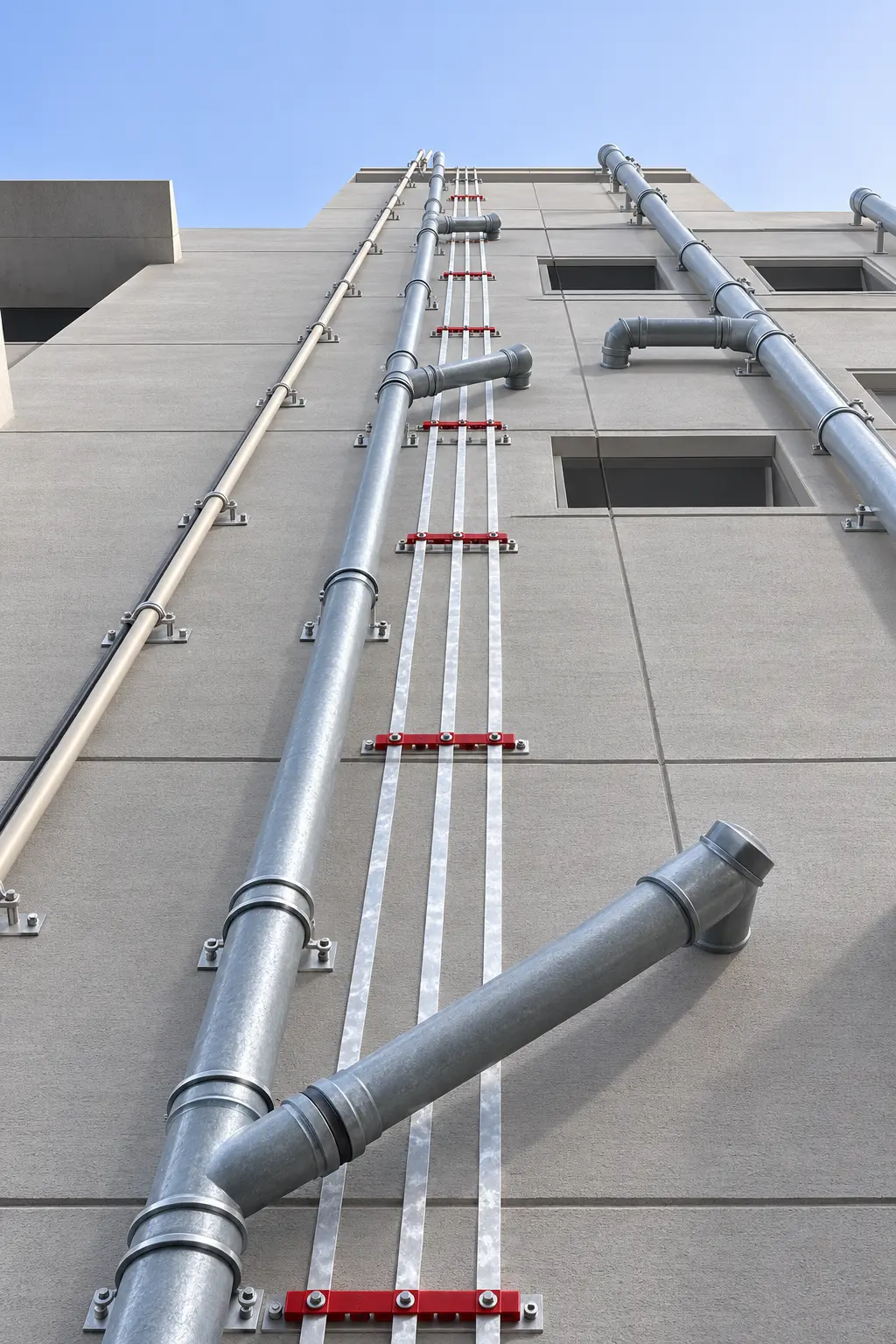

GI earthing strip and down conductor installation at Aundh, Pune
Industrial Earthing Completed
Industrial Earthing

GI Strip & Down Conductor Earthing — Aundh

Aundh, Pune Commercial / Industrial
GI Flat Strip 50×6mm Down Conductor GI Clamps

Hot-dip galvanised flat-strip earthing network routed across structural steelwork with dedicated down conductors at Aundh, Pune. All mechanical terminations torque-tested; earth resistance recorded at each pit and documented in the handover report.

Request Quote
Industrial Earthing Completed
Industrial Earthing

Chakan Industrial Plant — Complete Earthing System

Chakan MIDC, Pune Automotive / Manufacturing
Deep Chemical Earthing GI Electrode Inspection Chamber

Turnkey earthing system for a large manufacturing plant at Chakan MIDC, Pune — soil resistivity survey, multi-pit electrode design, full installation, and IS 3043-compliant test certificates for every earth pit delivered at handover.

Request Quote
Industrial Earthing Completed
Industrial Earthing

Deep Borewell Chemical Earthing — Drilling & Installation

Pune Region, Maharashtra High-resistivity Soil Site
Deep Borewell Electrode Chemical Compound Bentonite Backfill

Deep borewell drilling and chemical electrode installation for high-resistivity soil sites in the Pune region. Electrodes positioned at moisture-stable strata, achieving sub-1 Ω resistance where conventional shallow-pit methods are impractical.

Request Quote
Industrial Earthing Completed
Industrial Earthing

Hinjewadi IT Park — Deep Bore Earthing System

Hinjewadi IT Park, Pune IT / Commercial Campus
Deep Bore Chemical Earthing Copper Bonded Electrode Backfill Compound

Deep bore chemical earthing system for a multi-tower IT campus at Hinjewadi, Pune. Dedicated low-resistance earth pits protect data-centre infrastructure and UPS equipment from fault currents; compliance verified per IS 3043 with calibrated test instruments.

Request Quote
Industrial Earthing Completed
Industrial Earthing

Known You Seed — HT Panel Earthing System

Pune Region, Maharashtra Agro-Processing / Industrial
Pure Copper Electrode GI Strip Earthing Clamps

Dedicated HT panel earthing system for Known You Seed's agro-processing facility, Pune. Separate electrodes provided for panel body, neutral, and lightning termination; all pits tested and certified to IS 3043 at commissioning.

Request Quote
Industrial Earthing Completed
Industrial Earthing

Mumbai Industrial Zone — Surge Protection & Earthing

Mumbai Industrial Zone, Maharashtra Heavy Industry
Surge Protection Device Chemical Earthing GI Strip Network

Integrated surge protection and earthing system for a heavy-industry cluster in Mumbai. Type-2 SPDs installed at the MV/LV interface and all LT distribution boards, backed by a dedicated low-resistance chemical earthing grid verified by calibrated measurement.

Request Quote
Industrial Earthing Completed
Industrial Earthing

Tathawade Residential Tower — Earthing & Bonding

Tathawade, Pune High-Rise Residential
Chemical Earthing Copper Bonded Electrode Main Equipotential Bonding

Earthing and main equipotential bonding for a high-rise residential tower in Tathawade, Pune. Dedicated chemical earth pits provided for the LT substation, lift machinery, and fire-alarm panel; system compliant with NBC 2016 Part 8 and IS 3043.

Request Quote

Category

Lightning Protection Projects

ESE lightning arrester installations, conventional LPS systems, and NFC 17-102 compliant solutions for commercial high-rises, hospitals, IT parks, and MIDC industrial facilities.

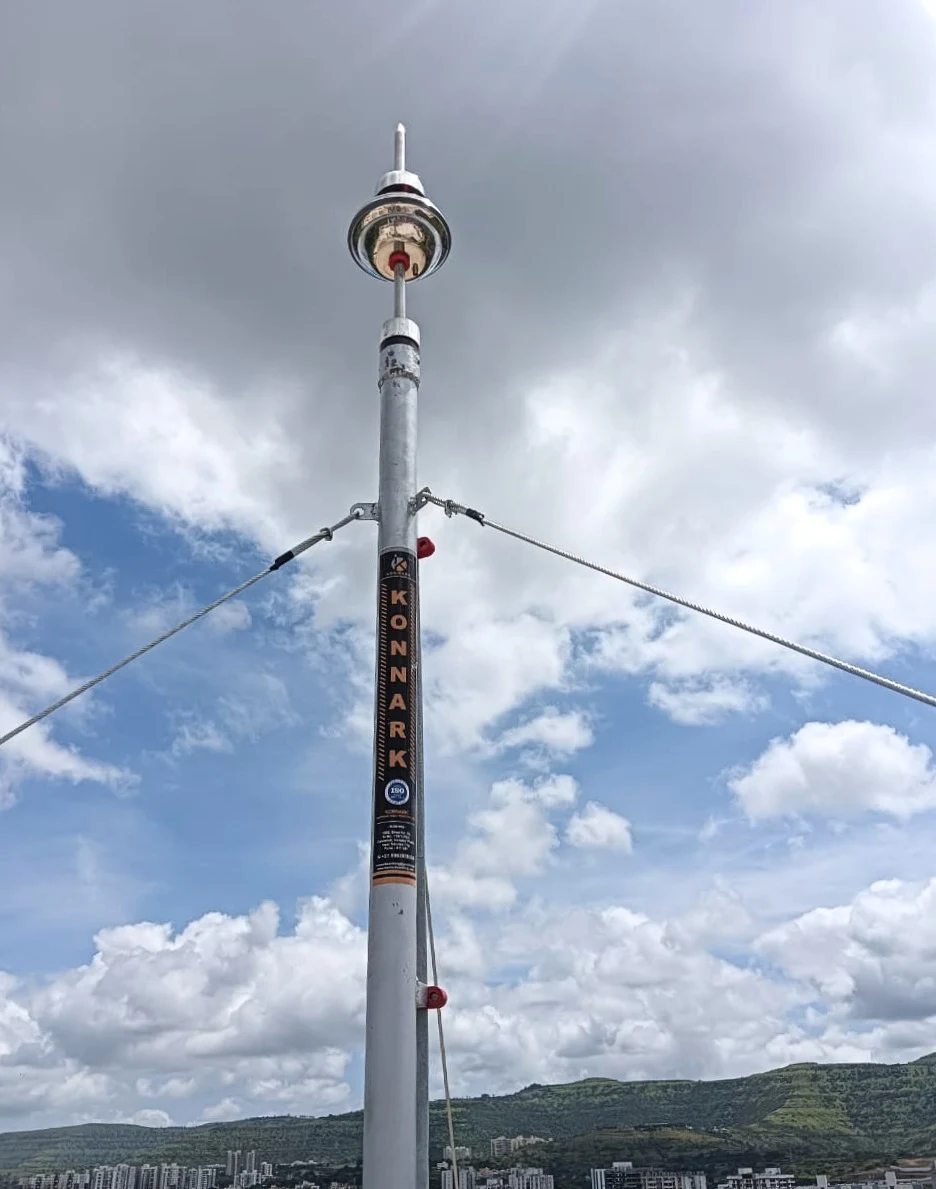

Konnark ESE lightning arrester installation at Talegaon, Pune
Lightning Protection Completed
Lightning Protection

ESE Lightning Arrester Installation — Talegaon

Talegaon, Pune Commercial / Industrial
ESE Lightning Arrester Down Conductor Earth Termination

ESE lightning arrester installation on a commercial structure at Talegaon, Pune. Lightning risk assessment conducted per NFC 17-102; facade-mounted down conductor routed to a dedicated lightning earth pit. Protection radius and discharge path certified.

Request Quote

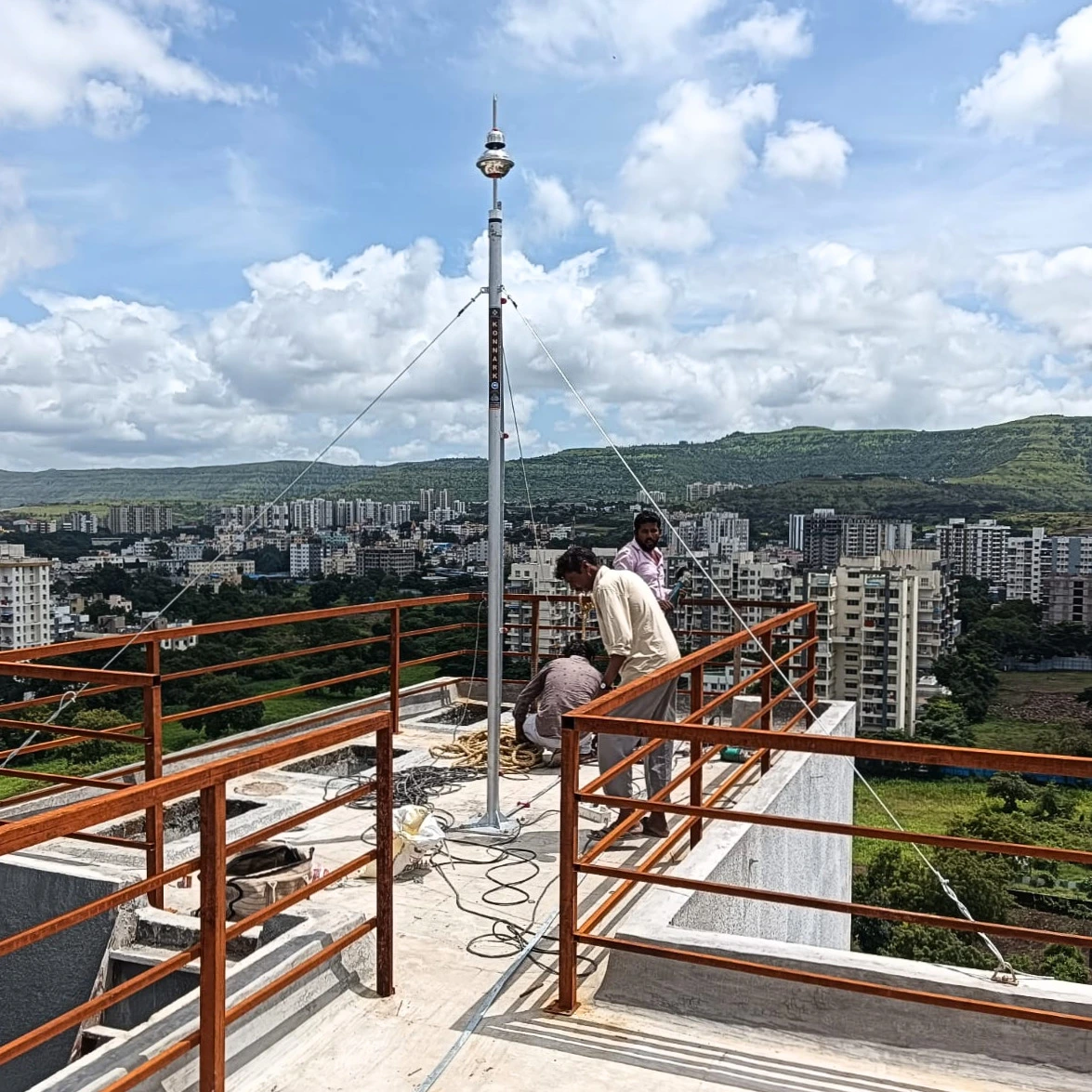

Konnark ESE lightning arrester mast installation
Lightning Protection Completed
Lightning Protection

ESE Lightning Arrester Mast

Pune Region, Maharashtra Industrial / Open Area
ESE Lightning Arrester Free-Standing Mast Surge Protection

Free-standing ESE lightning arrester mast fabricated and installed for industrial open-area protection in the Pune region. Complete earth termination, bonding to structural steel, and Type-1 SPD coordination included as part of the scope.

Request Quote
Lightning Protection Completed
Lightning Protection

Baner Commercial High-Rise — Lightning Protection System

Baner, Pune Commercial High-Rise
ESE Lightning Arrester Down Conductor Roof Air Terminal

NFC 17-102 compliant ESE lightning protection system for a commercial high-rise in Baner, Pune. Aesthetically concealed stainless-steel down conductors, dedicated lightning earth pit with inspection chamber, and coordinated SPDs at all LT distribution panels.

Request Quote
Lightning Protection Completed
Lightning Protection

Elpro Mall, Chinchwad — Lightning Arrester System

Chinchwad, Pune Retail Mall / Commercial
ESE Lightning Arrester Conventional Air Terminal SPD

Full-scope lightning protection for Elpro Mall, Chinchwad. ESE arrester installed at the roof apex for maximum coverage; conventional air terminals distributed across the roof perimeter, with coordinated SPDs at all main and sub-distribution boards.

Request Quote
Lightning Protection Completed
Lightning Protection

ESE Lightning Arrester — Factory Dispatch, Chakan

Chakan, Pune Manufacturing / Dispatch
ESE Lightning Arrester Factory QC Type-Tested Unit

ESE lightning arresters type-tested and dispatched from Konnark's Chakan production facility. Every unit undergoes pre-dispatch electrical performance inspection and packaging audit to ensure site-readiness prior to field installation.

Request Quote
Lightning Protection Completed
Lightning Protection

National Institute of Naturopathy — Lightning Protection, Pune

Pune, Maharashtra Healthcare / Institutional
ESE Lightning Arrester Conventional Air Terminal SPD at DB

Lightning protection system for the National Institute of Naturopathy heritage campus, Pune. ESE arrester positioned at the highest structural point; down conductors architecturally concealed to preserve the building aesthetic, with SPDs fitted at all distribution boards.

Request Quote
Lightning Protection Completed
Lightning Protection

Satara — ESE Lightning Arrester Installation

Satara, Maharashtra Commercial / Industrial
ESE Lightning Arrester Down Conductor Earth Termination

ESE lightning arrester installed on an industrial structure in Satara, Maharashtra. Down conductor sized per IEC 62305 and routed to a dedicated lightning earth pit; protection radius and system performance certified per NFC 17-102.

Request Quote

Category

Earth Pit Testing & Maintenance

Calibrated earth resistance measurement, periodic pit maintenance, and compliance reporting services for industrial plants, commercial buildings, and critical infrastructure.

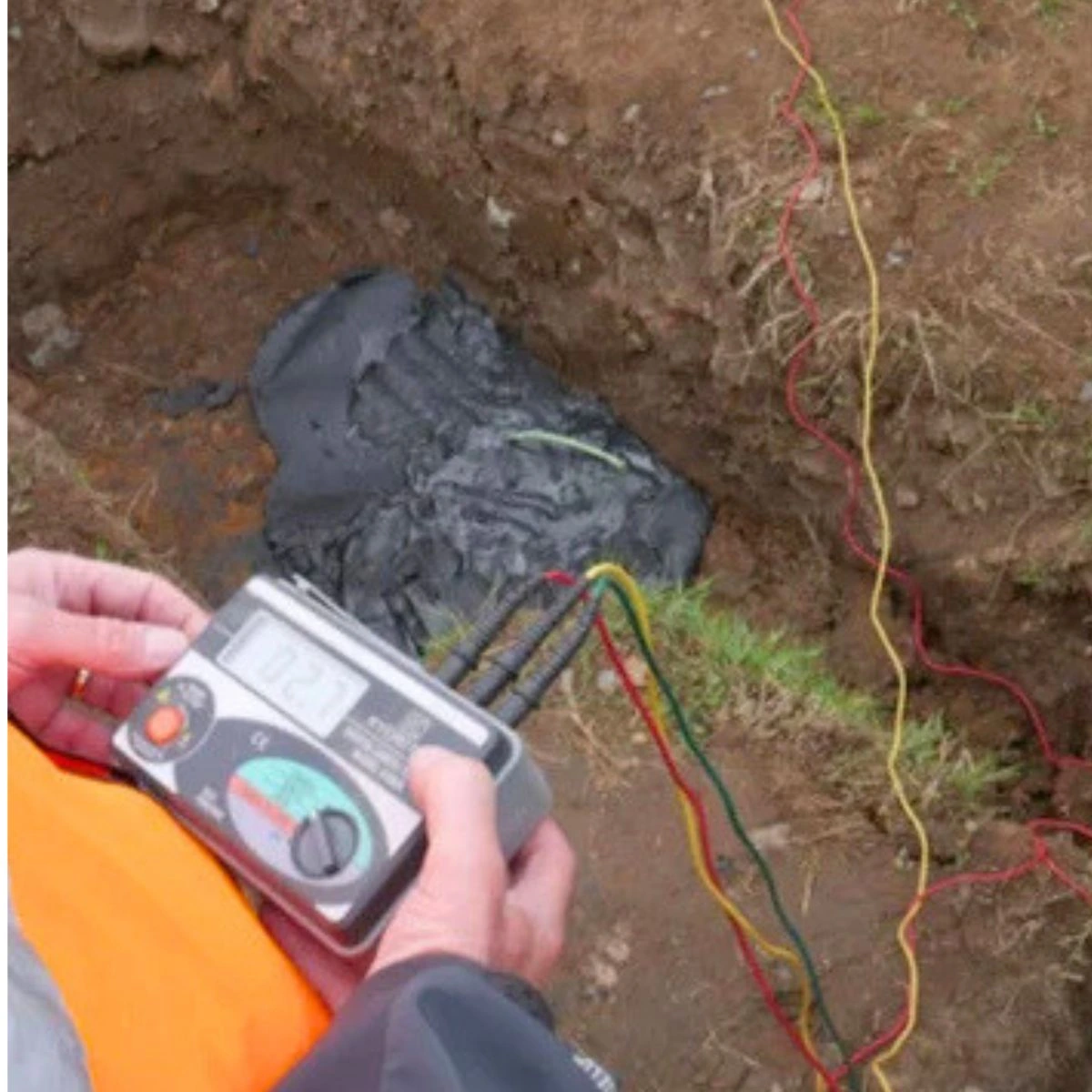

Earth pit resistance testing at Pimpri, Pune using digital earth megger
Earth Pit Testing Completed
Earth Pit Testing & Maintenance

Earth Pit Resistance Testing — Pimpri, Pune

Pimpri, Pune Industrial Audit
Digital Earth Megger 3-Point Measurement Test Report

Calibrated digital megger testing of earth pit resistance at an industrial facility in Pimpri, Pune. All pits measured using the 3-point fall-of-potential method and documented against IS 3043 acceptance criteria; non-compliant pits identified with written remediation recommendations.

Request Quote

Category

Brand & Company

Konnark Earthing Solutions — India's trusted manufacturer of precision earthing electrodes and lightning protection systems, engineered for performance and certified for safety.

Brand & Company
Brand & Company

Konnark Earthing Solutions

Pune, Maharashtra Manufacturer & Solutions Provider
Earthing Electrodes Lightning Protection IS 3043 Certified

Konnark Earthing Solutions Pvt. Ltd. — precision manufacturer of IS 3043 certified earthing electrodes and NFC 17-102 compliant ESE lightning protection systems, serving industrial, commercial, and critical infrastructure sectors across India.

Request Quote

Sector Expertise

Industries Served

Konnark provides earthing and lightning protection solutions across a wide range of industries, each with distinct safety, compliance, and installation requirements.

Solar
Manufacturing
Commercial Buildings
Oil & Gas
Hospitals
Data Centres
Telecom
Infrastructure

Earthing and lightning protection requirements are assessed individually for each sector. Contact our technical team for industry-specific guidance.

Ready to Begin

Need a Customised Earthing or
Lightning Protection Solution?

Our technical team will assess your site requirements, recommend the correct system design, and provide a detailed project proposal — at no obligation.

Get Quote Contact Us
IS 3043 Compliant
Fast Turnaround
Test Reports Included
Experienced Installation Teams
