Earthing Electrodes

Grounding Electrodes

High-performance electrodes manufactured to IS, IEC, and IEEE standards for reliable fault-current dissipation in all soil conditions.

Best Seller

Earthing Electrode

Copper Bonded Earthing Electrode

Steel core electrode with a molecularly bonded copper layer offering exceptional corrosion resistance and superior electrical conductivity. Ideal for aggressive soil environments and long-service installations.

Key Specifications

Diameter 14.2 mm, 17.2 mm

Length 1 m, 1.5 m, 2 m, 3 m

Cu Thickness 0.25 mm (min. 250 micron)

Standard IS 3043, UL 467, BS 7430

Applications

Power Plants Substations Telecom Towers Data Centres

Earthing Electrode

GI Earthing Electrode

Hot-dip galvanised iron electrode offering cost-effective grounding performance for general-purpose industrial and commercial applications. Robust zinc coating ensures reliable protection against surface corrosion.

Key Specifications

Diameter 20 mm, 25 mm, 40 mm

Length 1 m to 3 m (custom)

Coating Hot-dip galvanised, 86 µm+

Standard IS 3043, IS 2629

Applications

Commercial Buildings Factories Railways Utilities

Premium

Earthing Electrode

Pure Copper Earthing Electrode

Solid electrolytic-grade pure copper electrodes delivering the lowest ground resistance achievable. Engineered for critical infrastructure where zero-compromise fault protection is mandated by design codes.

Key Specifications

Purity 99.9% electrolytic copper

Diameter 12 mm, 16 mm, 20 mm

Length 1 m to 3 m

Standard IS 3043, IEEE 80, IEC 62561

Applications

Nuclear Facilities Hospitals IT Parks Defence

Earthing Electrode

T-Type Copper Earthing Electrode

T-shaped copper earthing electrode designed for shallow soil conditions where vertical electrode installation is impractical. Maximises earth contact area for effective fault current dissipation.

Key Specifications

Material Electrolytic copper

Configuration T-type horizontal

Purity 99.9% ETP copper

Standard IS 3043, IEC 62561

Applications

Rocky Ground Shallow Soil Solar Farms Transmission Lines

Popular

Bonded Rod

Copper Bonded Earthing Rod

Copper bonded steel earthing rod with molecularly bonded copper layer for superior corrosion resistance and conductivity. Suitable for deep-driven installations in high-resistivity and aggressive soil environments.

Key Specifications

Diameter 50 mm, 80 mm, 100 mm

Length 1 m, 2 m, 3 m

Material Copper bonded / GI pipe

Standard IS 3043, IEC 62561-2

Applications

Rocky Terrain Sandy Soil Hilly Areas Limited Space

Plate Earthing

GI Earthing Electrode Set

Complete GI earthing electrode set including hot-dip galvanised iron plate, GI pipe, and all required hardware for a ready-to-install earthing pit. Uniform zinc coating ensures reliable corrosion protection in diverse soil types.

Key Specifications

Size 600×600 mm, 900×900 mm

Thickness 6 mm

Coating Hot-dip galvanised, IS 2629

Standard IS 3043, IS 2629

Applications

Industrial Plants Residential Commercial Infrastructure

Earthing Plates

Plate Earthing Systems

Copper and aluminium earthing plates engineered for low-resistance grounding in substations, plants, and commercial installations.

Plate Earthing

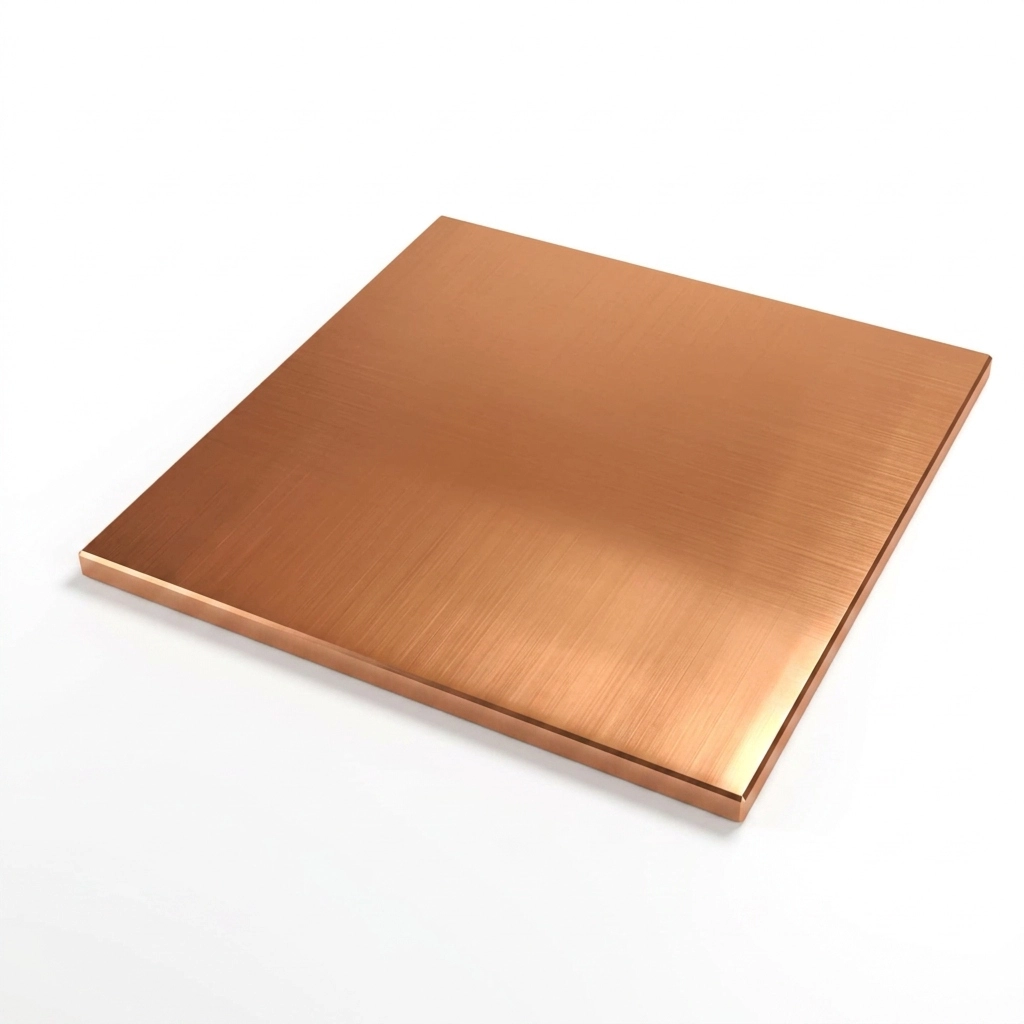

Pure Copper Earthing Plate

Rolled electrolytic copper earthing plates providing large contact surface area for superior fault-current dissipation. Manufactured to precise thickness tolerances and supplied with predrilled terminal holes for quick installation.

Key Specifications

Size 600×600 mm, 900×900 mm

Thickness 3 mm, 6 mm

Purity 99.9% electrolytic copper

Standard IS 3043, BS 7430

Applications

Substations Switchyards Generating Stations Oil & Gas

Plate Earthing

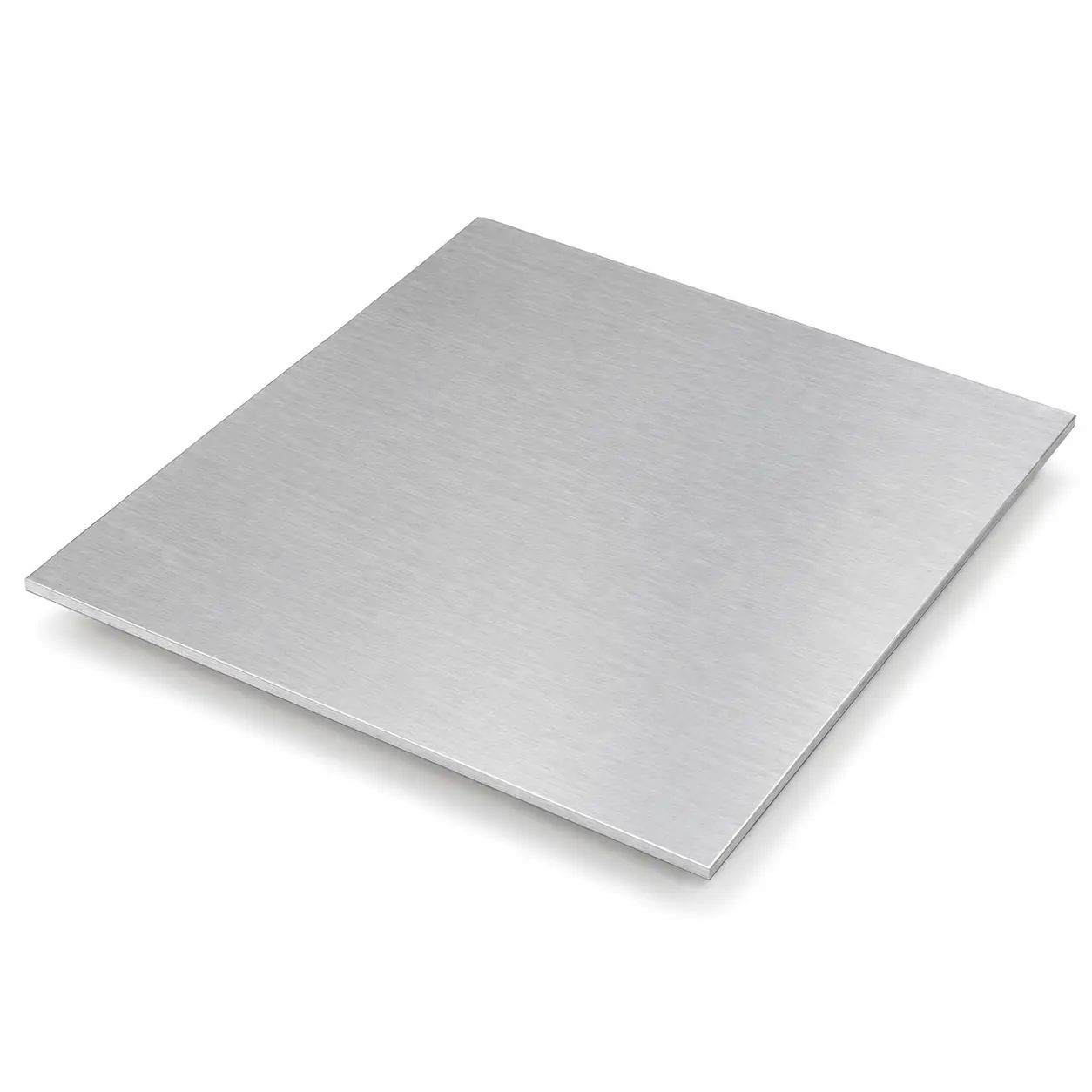

Aluminium Earthing Plate

High surface-area aluminium earthing plates offering a lightweight and cost-effective alternative to copper for grounding systems in non-corrosive environments. Predrilled terminal holes for quick connection.

Key Specifications

Size 600×600 mm, 900×900 mm

Thickness 3 mm, 6 mm

Material EC Grade Aluminium

Standard IS 3043, IS 5082

Applications

Factories Warehouses Telecom Sites Solar Farms

Plate Earthing

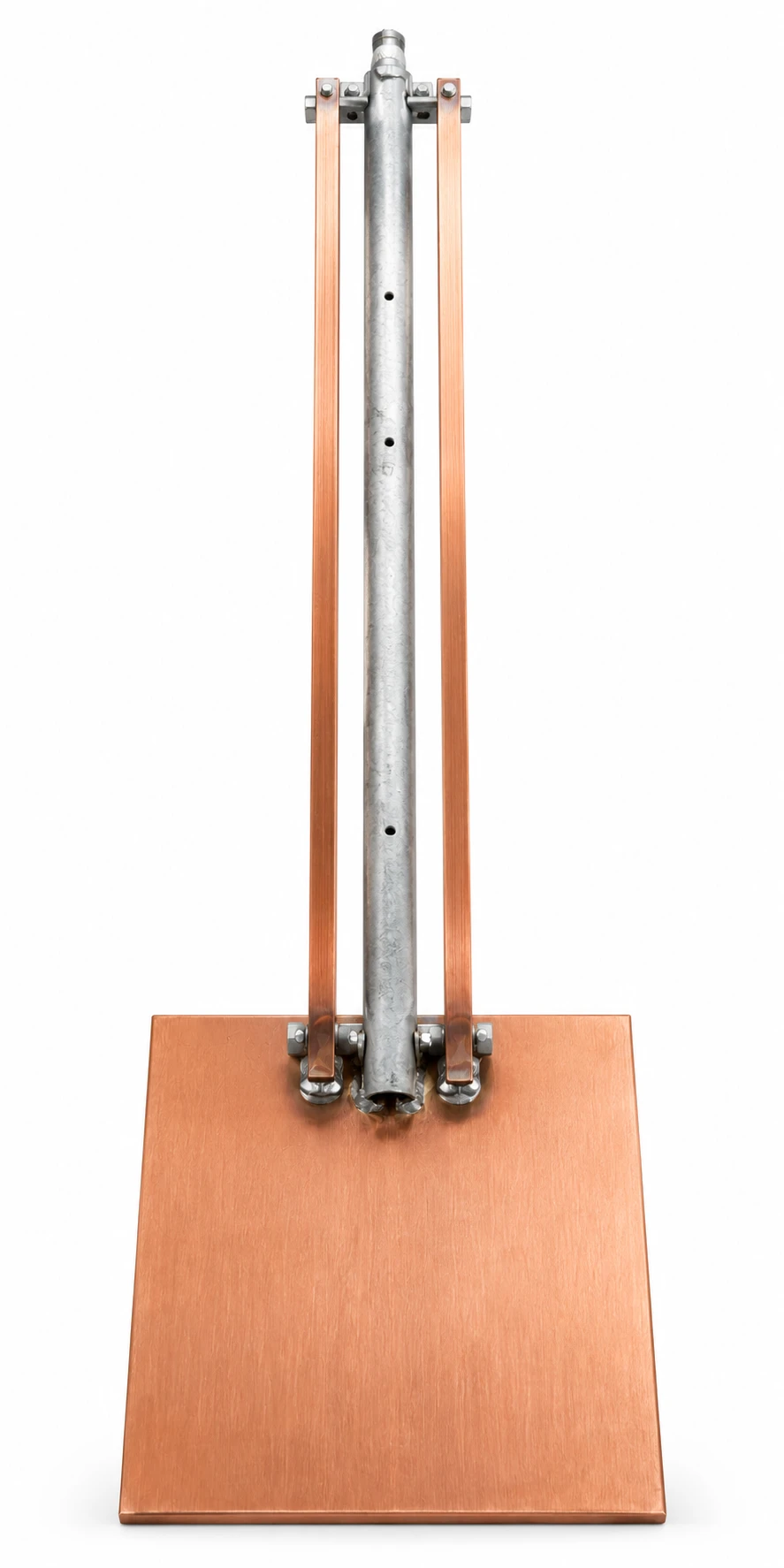

Copper Plate Earthing Kit

Complete copper plate earthing kit supplied with all hardware, cable connections, and funnels required for a ready-to-install earth pit. Ensures consistent installation quality and compliance with IS 3043.

Key Specifications

Plate Size 600×600 mm, 900×900 mm

Purity 99.9% electrolytic copper

Kit Includes Plate, cable, clamp, funnel

Standard IS 3043, BS 7430

Applications

Residential Commercial Substations Industrial

Chemical Earthing & Earth Pit Products

Backfill compounds and earth pit components that maintain low soil resistivity and protect earthing systems for the long term.

Compound

Advanced Backfill Compound

Carbon-based conductive backfill compound that reduces soil resistivity around the electrode by up to 80%, enhancing ground contact and ensuring consistent performance throughout the electrode's service life.

Key Specifications

Composition Carbon-based, non-corrosive

Resistivity < 0.12 Ω·m

Packaging 25 kg bags

Standard IS 3043, IEEE 80

Applications

Electrode Pits Earth Grids High-Resistivity Soil Chemical Earthing

Pit Accessory

Earth Pit Chamber

Heavy-duty earth pit chamber designed to enclose and protect electrode termination points from physical damage, water ingress, and contamination. Available with locking cover and inspection access for field testing.

Key Specifications

Material Cast iron / FRP

Size 300×300 mm, 450×450 mm

Load Rating Up to 5 tonne

Finish Powder-coated / Natural

Applications

Outdoor Pits Floor-Level Install Road Crossings Parking Areas

Pit Accessory

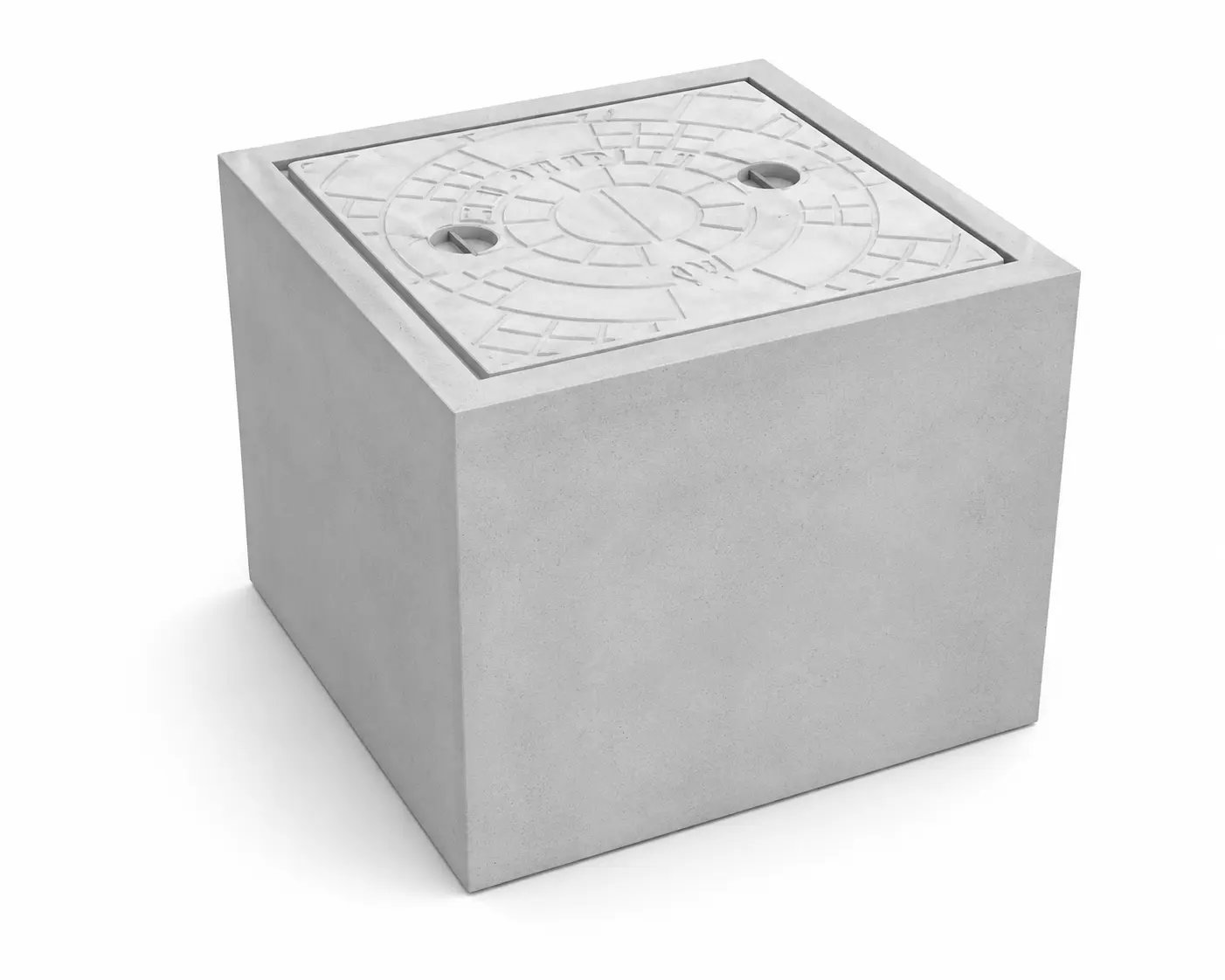

RCC Earth Pit Chamber

Reinforced concrete earth pit chamber for heavy-duty outdoor installations requiring superior load-bearing capacity. Designed to protect electrode termination points in road crossings, car parks, and industrial floors.

Key Specifications

Material Reinforced concrete

Size 300×300 mm, 450×450 mm

Load Rating Up to 10 tonne

Standard IS 3043

Applications

Road Crossings Parking Areas Industrial Floors Outdoor Pits

Pit Accessory

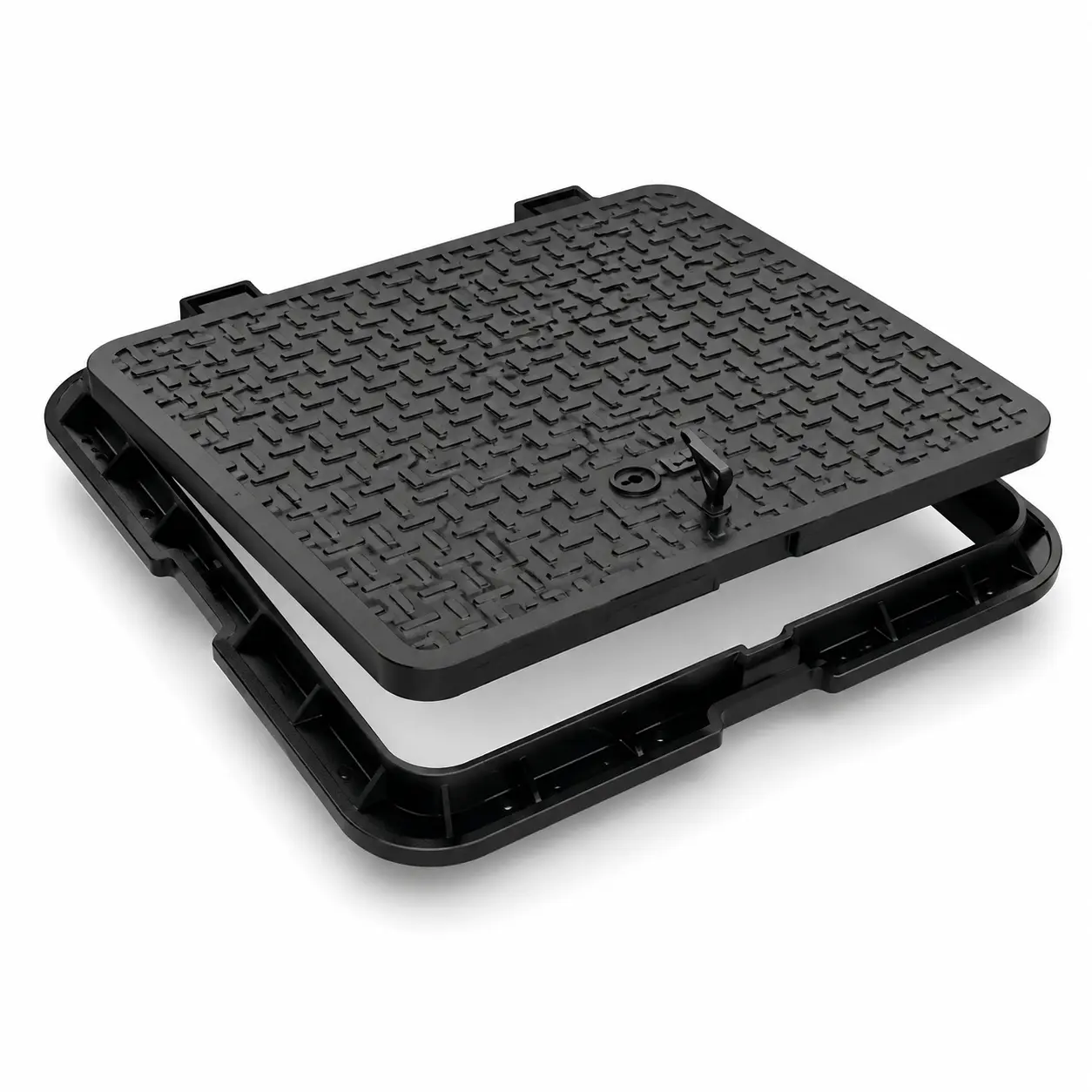

Cast Iron Earth Pit Cover

Heavy-duty cast iron cover for earth pit chambers, providing mechanical protection and access for inspection. Corrosion-resistant finish ensures long service life in outdoor and industrial environments.

Key Specifications

Material Cast iron

Size 300×300 mm, 450×450 mm

Load Rating Up to 5 tonne

Finish Epoxy coated / Natural

Applications

Outdoor Installations Industrial Sites Substations Road Areas

Pit Accessory

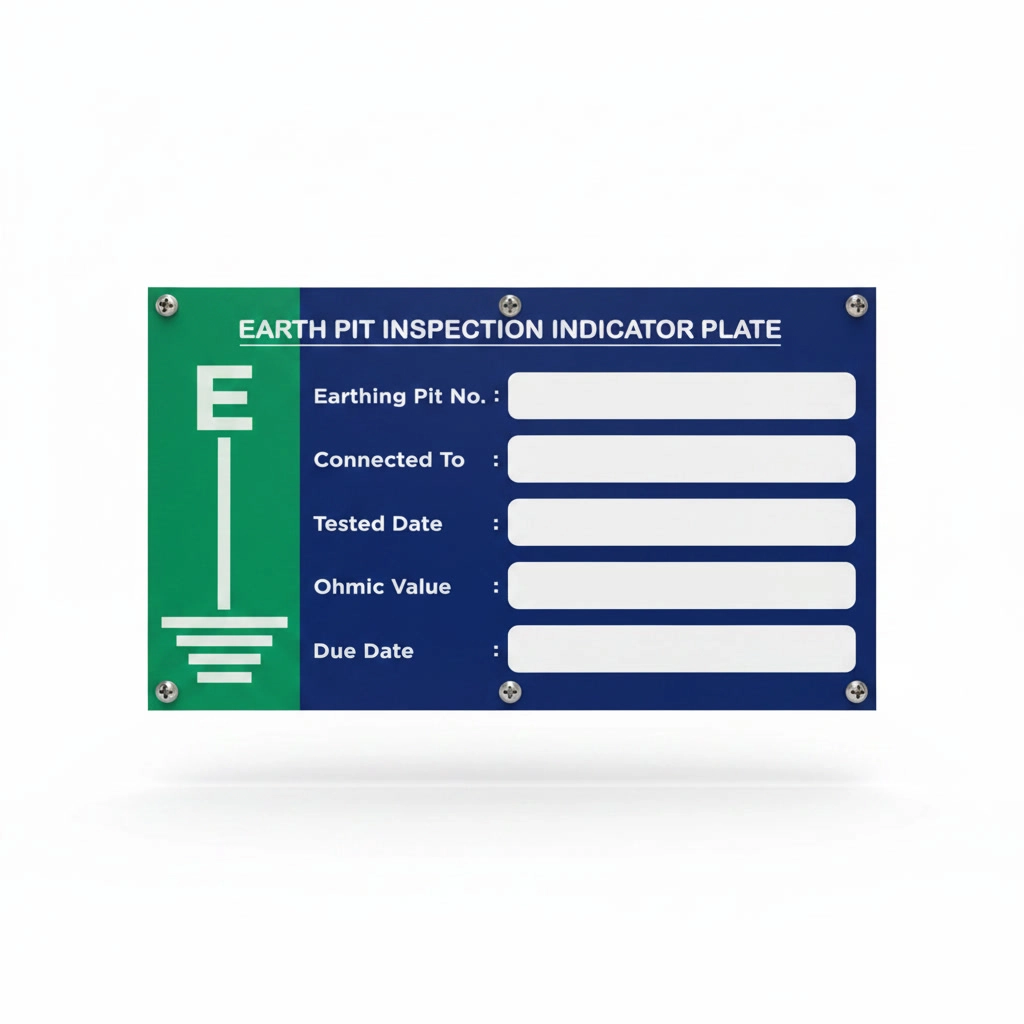

Earth Pit Identification Plate

Durable identification plate for earth pit locations, providing clear visual marking of earthing points for maintenance and inspection teams. Weather-resistant finish ensures long-term legibility in outdoor and industrial installations.

Key Specifications

Material Powder-coated aluminium / SS

Marking Earth symbol, ID number

Finish Weather-resistant coating

Fixing Screw / rivet mount

Applications

Arid Regions Sandy Soil Laterite Soil Seasonal Use

Earthing Strips

Copper, GI, and aluminium strips for equipotential bonding and earth grid interconnection across industrial installations.

Copper Conductor

Copper Strip

High-conductivity electrolytic copper flat strips for use as earth bus, bonding conductor, and grid interconnection. Supplied in straight lengths and coils with precise thickness and width tolerances.

Key Specifications

Size 25×3, 25×6, 32×6, 50×6 mm

Purity 99.9% ETP copper

Length 3 m lengths / coil

Standard IS 613, BS EN 13601

Applications

Earth Grids Bus Bars Bonding Substation Ring

GI Conductor

GI Strip

Hot-dip galvanised iron flat strips offering a cost-effective solution for grounding conductors, structural bonding, and earthing grid interconnections in general industrial installations.

Key Specifications

Size 25×6, 40×6, 50×6 mm

Coating Hot-dip galvanised

Length 3 m, 6 m standard

Standard IS 2629, IS 3043

Applications

Factories Warehouses Structural Bonding MV/LV Systems

Aluminium Conductor

Aluminium Strip

Aluminium flat strips for earthing conductors and bonding applications where weight reduction is essential. Suitable for structural bonding, earth grid interconnection, and cost-effective grounding installations.

Key Specifications

Size 25×3, 25×6, 32×6, 50×6 mm

Material EC Grade Aluminium

Length 3 m lengths / coil

Standard IS 3043, IS 5082

Applications

Earth Grids Structural Bonding Solar Parks Telecom Towers

Busbars

Copper & Aluminium Busbars

Precision-fabricated busbars for reliable earth bus distribution in panels, switchgear, and substations.

Busbar

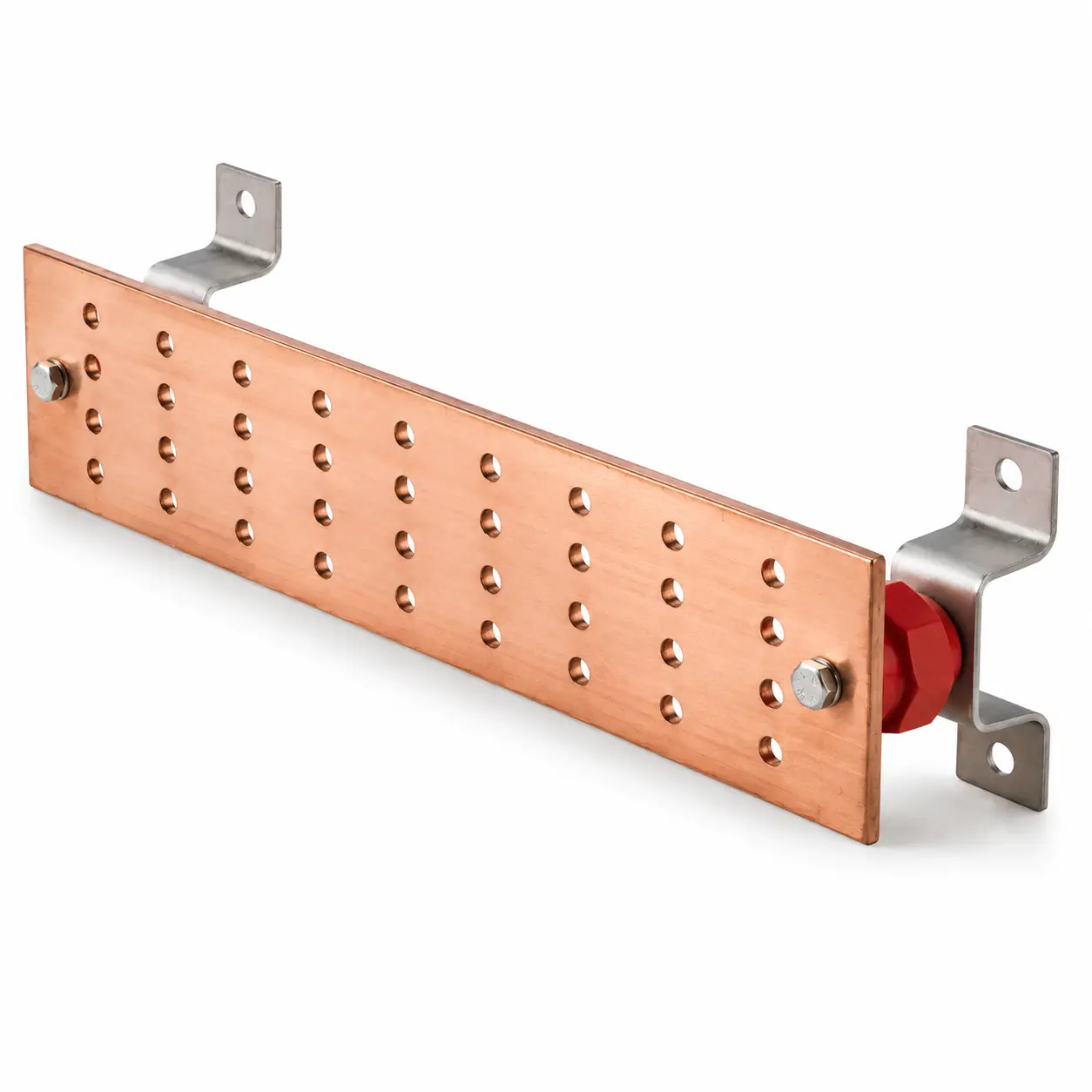

Copper Busbar

High-conductivity electrolytic copper busbars for main and sub earthing distribution in switchgear rooms, MDB panels, and substations. Supplied in standard and custom sizes with pre-drilled mounting holes.

Key Specifications

Size 25×6, 50×6, 100×10 mm

Material 99.9% ETP copper

Holes Pre-drilled M6 / M8 / M10

Standard IEC 60439, IS 8623

Applications

MDB / SMDB Panels Data Centres Switchgear Rooms Substations

Busbar

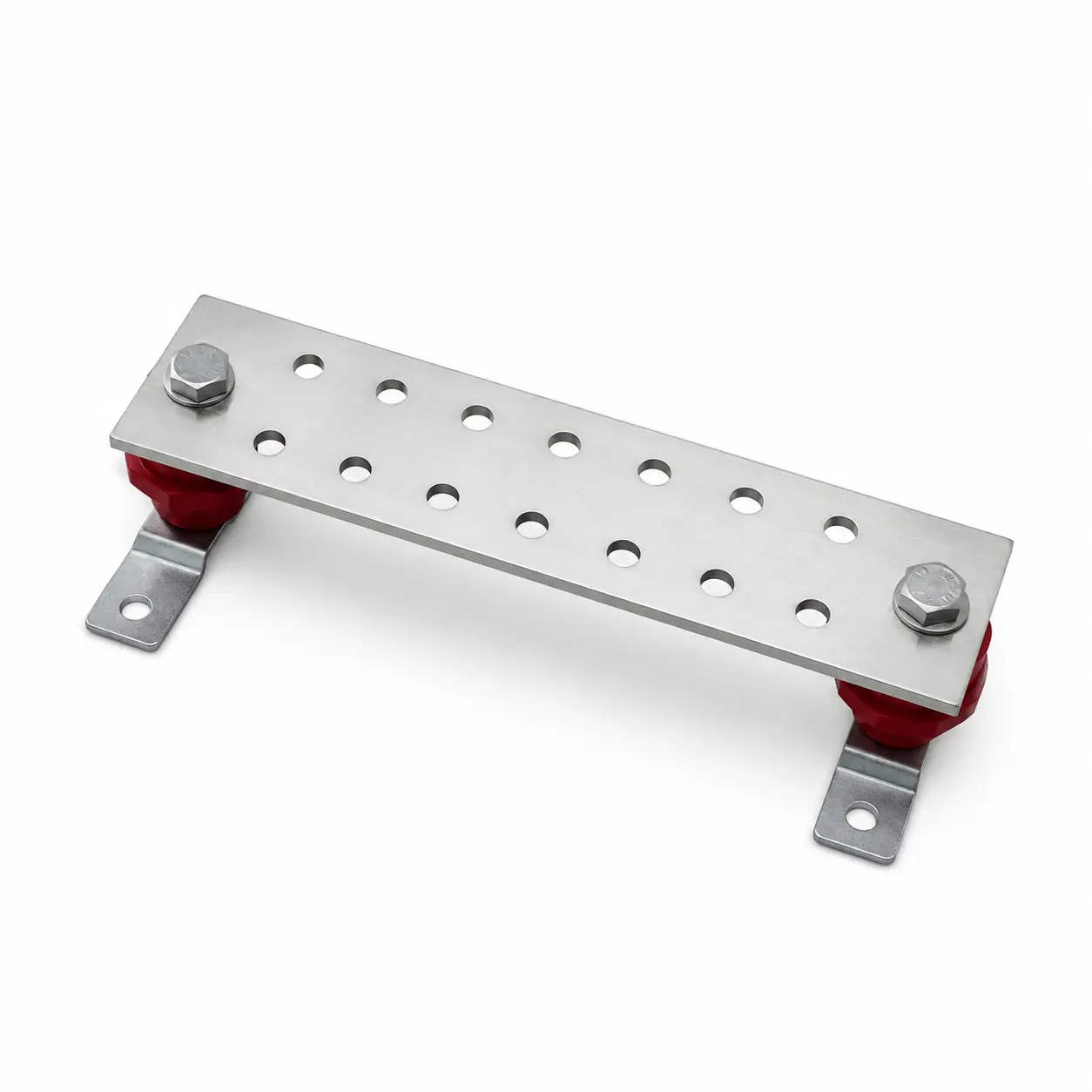

Aluminium Busbar

EC-grade aluminium busbars offering a lightweight and cost-effective alternative for earthing distribution systems. Suitable for panel boards, sub-distribution boards, and solar inverter earthing connections.

Key Specifications

Size 25×6, 50×6, 100×10 mm

Material EC Grade Aluminium

Holes Pre-drilled M6 / M8 / M10

Standard IEC 60439, IS 5082

Applications

Panel Boards Sub-DBs Solar Inverters EV Charging

Earthing Accessories

Clamps, sleeves, insulators, kits, and conductors that complete a fully compliant, long-lasting earthing installation.

Accessory

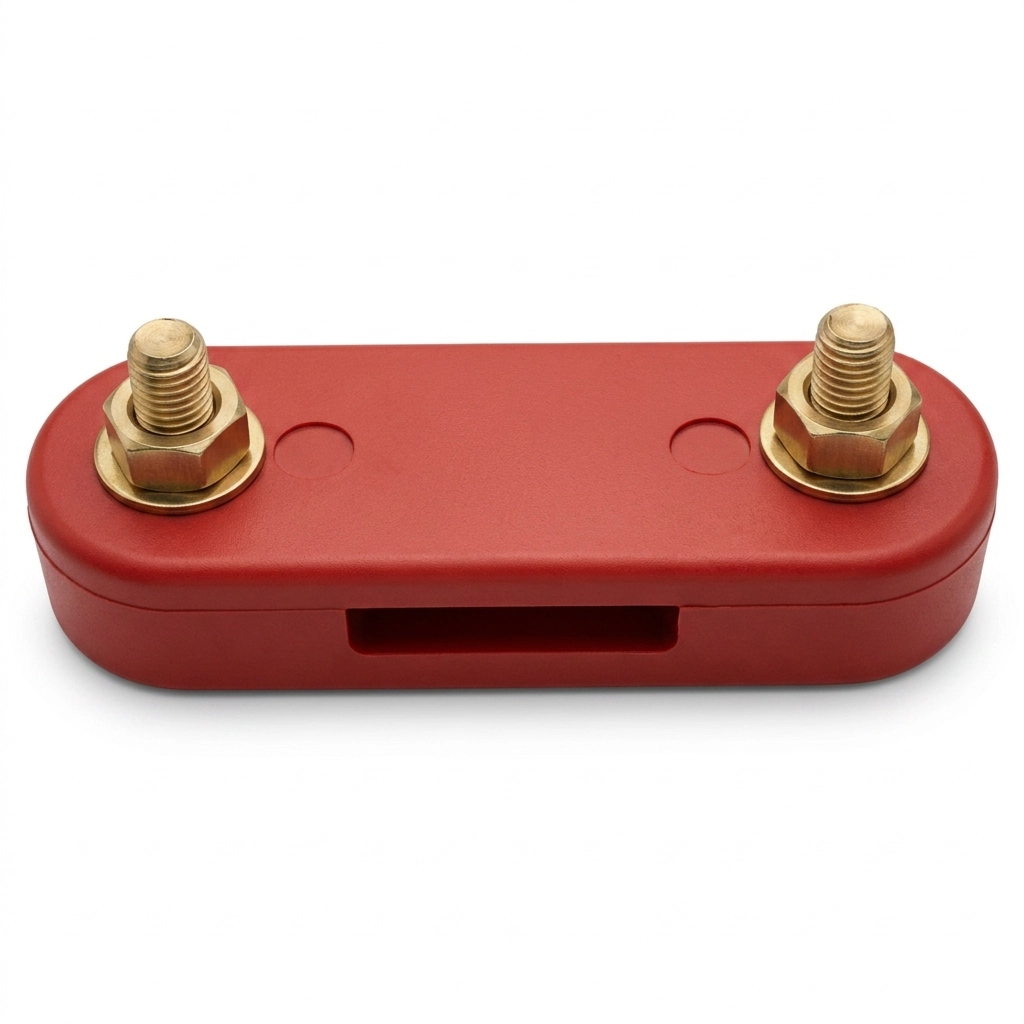

Earthing Insulator

High-strength insulators for isolating and supporting conductor runs in lightning protection and earthing systems. UV-stabilised polymer construction ensures reliable long-term performance in outdoor environments.

Key Specifications

Material UV-stabilised polymer

Type Snap-on / Screw-fix

Standard IEC 62561-2

Applications

LPS Down Conductors Roof Conductors Panel Earthing Bonding

Accessory

Earthing Sleeve

Protective earthing sleeves for sleeving conductor joints and terminations in earthing and lightning protection systems. Provides mechanical protection and electrical isolation at all connection points.

Key Specifications

Material UV-stabilised polymer

Sizes Various to suit conductor OD

Standard IEC 62561, IS 3043

Applications

Conductor Joints Rod Terminations LPS Systems Outdoor Use

Accessory

Earthing Kit

Complete earthing kit containing all hardware required for a single earth pit installation including clamps, cable, and connectors. Ensures consistent quality and full IS 3043 compliance on every installation.

Kit Contents

Includes Electrode, clamp, cable, funnel

Material Copper / GI / SS 304

Standard IS 3043

Applications

Residential Commercial Industrial Telecom

Accessory

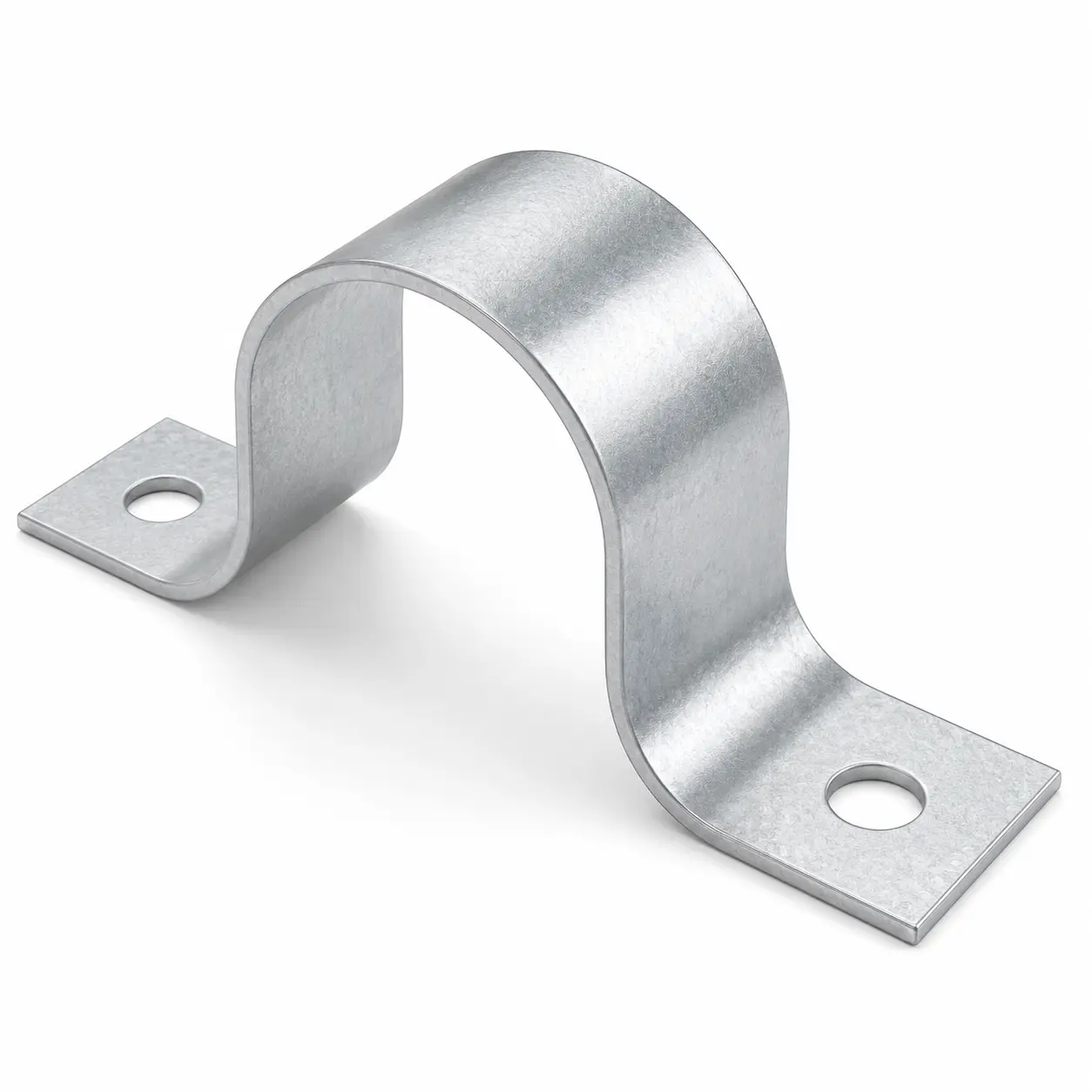

Pipe Saddle Clamp

Stainless steel pipe saddle clamps for bonding earthing conductors to pipes, structural steel, and metallic frameworks. Provides reliable mechanical and electrical connection without welding.

Key Specifications

Material SS 304 / SS 316

Pipe Range 20 mm to 200 mm OD

Standard IEC 62561-1

Applications

Pipe Bonding Structural Steel LPS Equipotential Bonding

Accessory

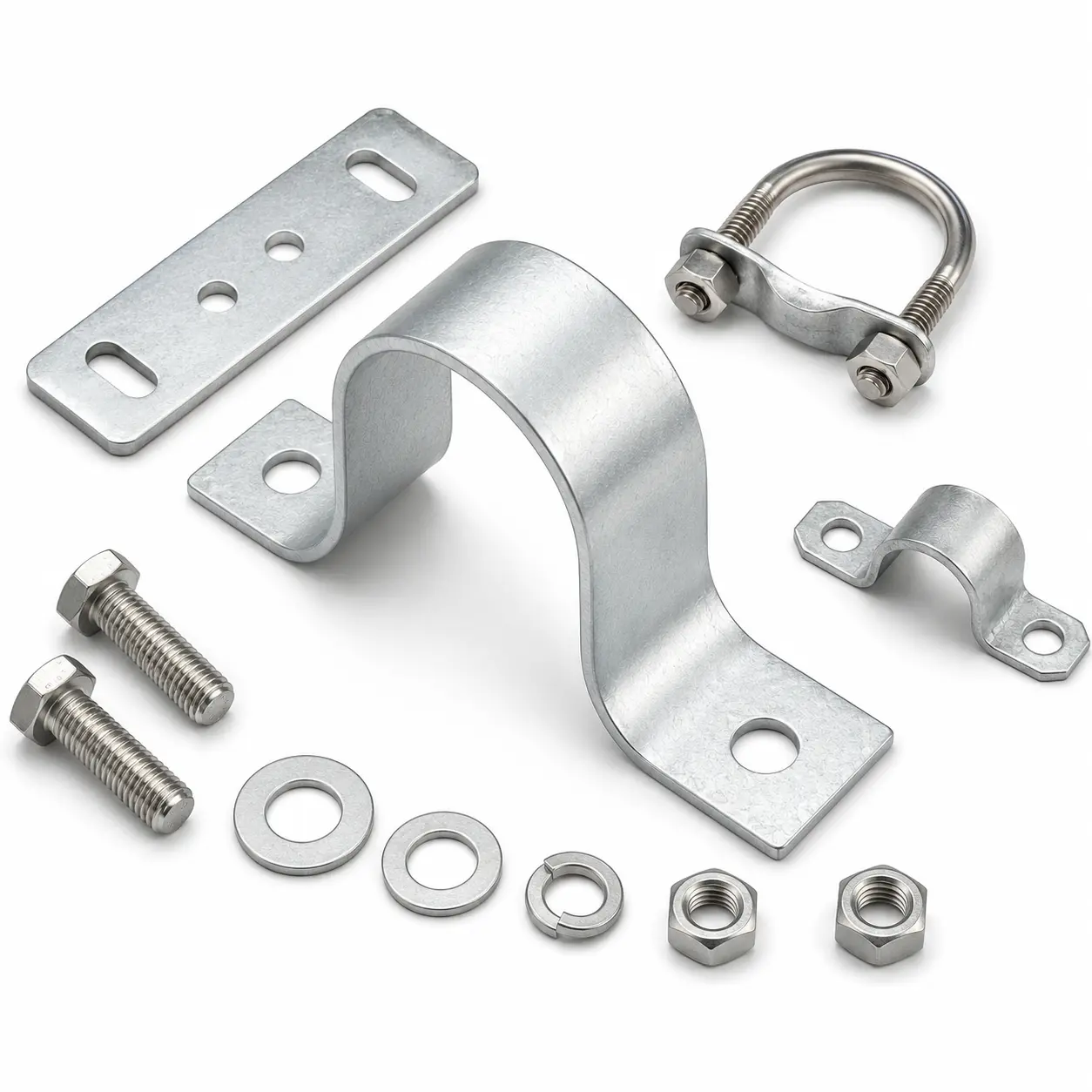

Pipe Saddle Clamp Kit

Complete pipe saddle clamp kit including clamp body, bolts, nuts, and washers for bonding earthing conductors to pipes and metallic structures. Ready to install with all hardware included.

Key Specifications

Material SS 304 / SS 316

Kit Contents Clamp, bolts, nuts, washers

Standard IEC 62561-1

Applications

Industrial Piping LPS Bonding HVAC Systems Oil & Gas

Accessory

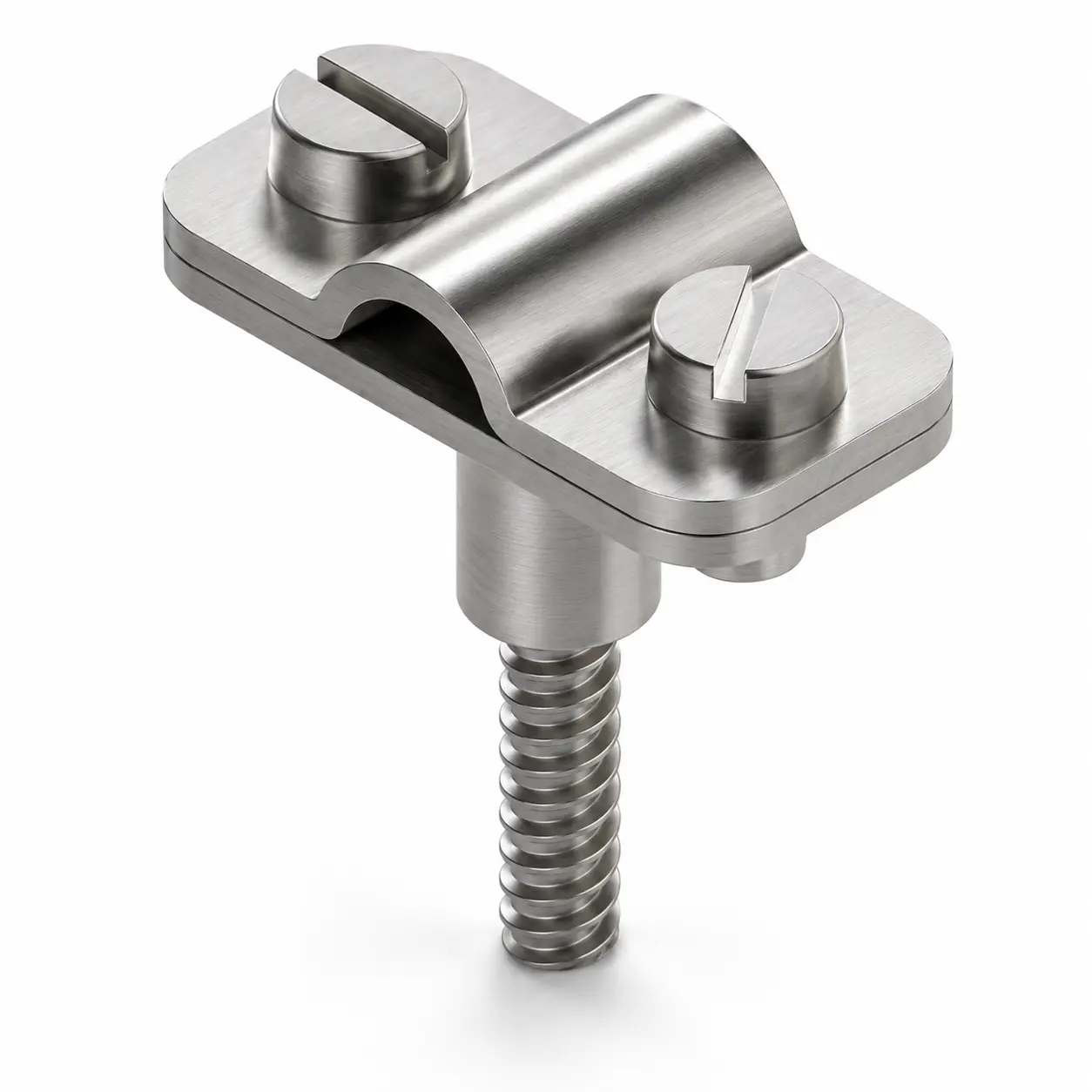

Aluminium Conductor Clamp

Aluminium conductor clamps for securing and connecting earthing conductors to structural elements in solar farms and industrial installations. Lightweight and corrosion-resistant for extended outdoor service.

Key Specifications

Material Die-cast aluminium

Conductor Size 25–95 mm²

Standard IEC 62561-1

Applications

Solar Farms Telecom Towers Structural Bonding Industrial

Accessory

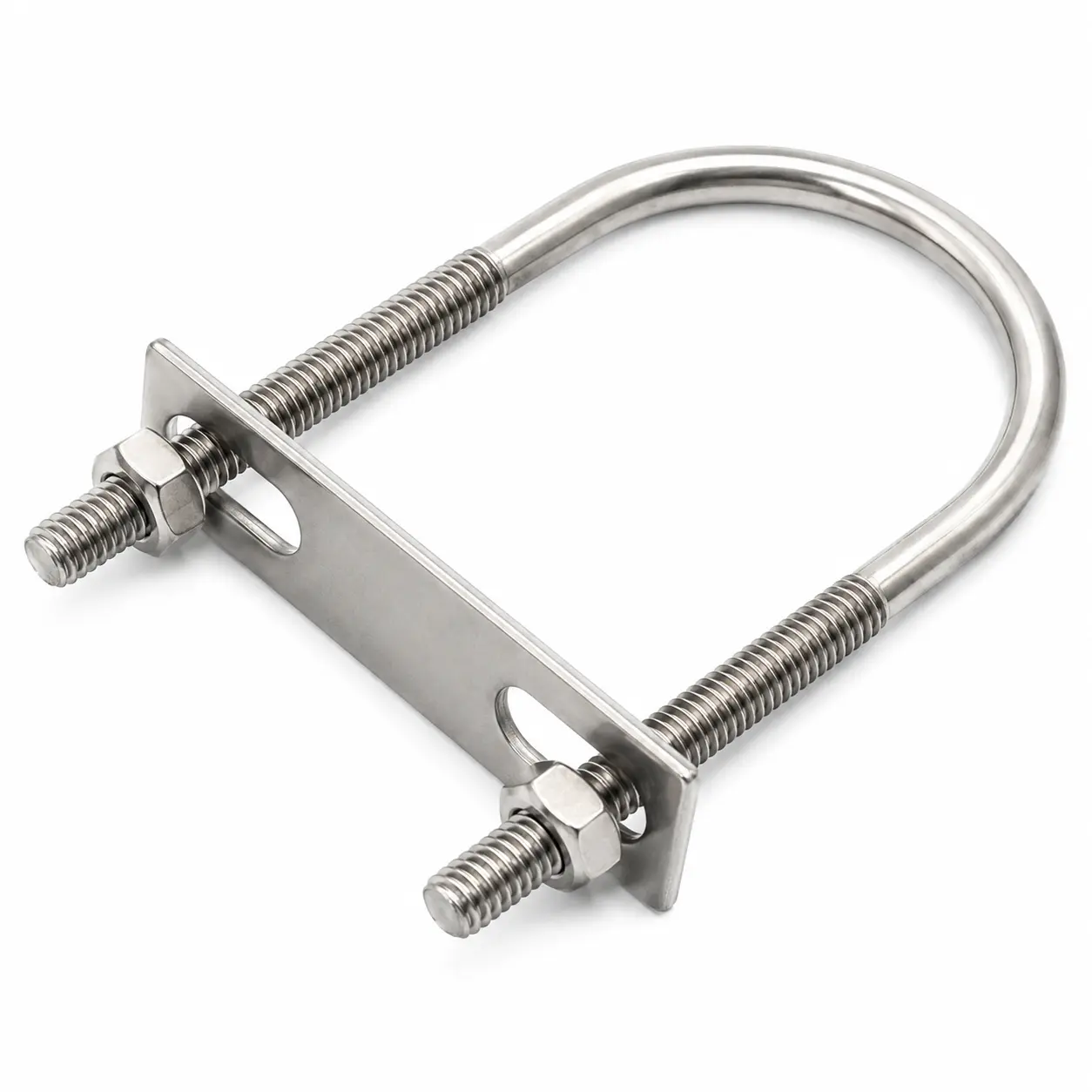

Stainless Steel U-Bolt Clamp

Stainless steel U-bolt clamps for mechanically and electrically bonding earthing conductors to pipes, rods, and structural members. Corrosion-resistant SS construction ensures reliability in harsh environments.

Key Specifications

Material SS 304 / SS 316

Pipe Range 15 mm to 100 mm OD

Standard IEC 62561-1

Applications

Pipe Bonding Rod Clamping Structural Steel Marine / Coastal

Accessory

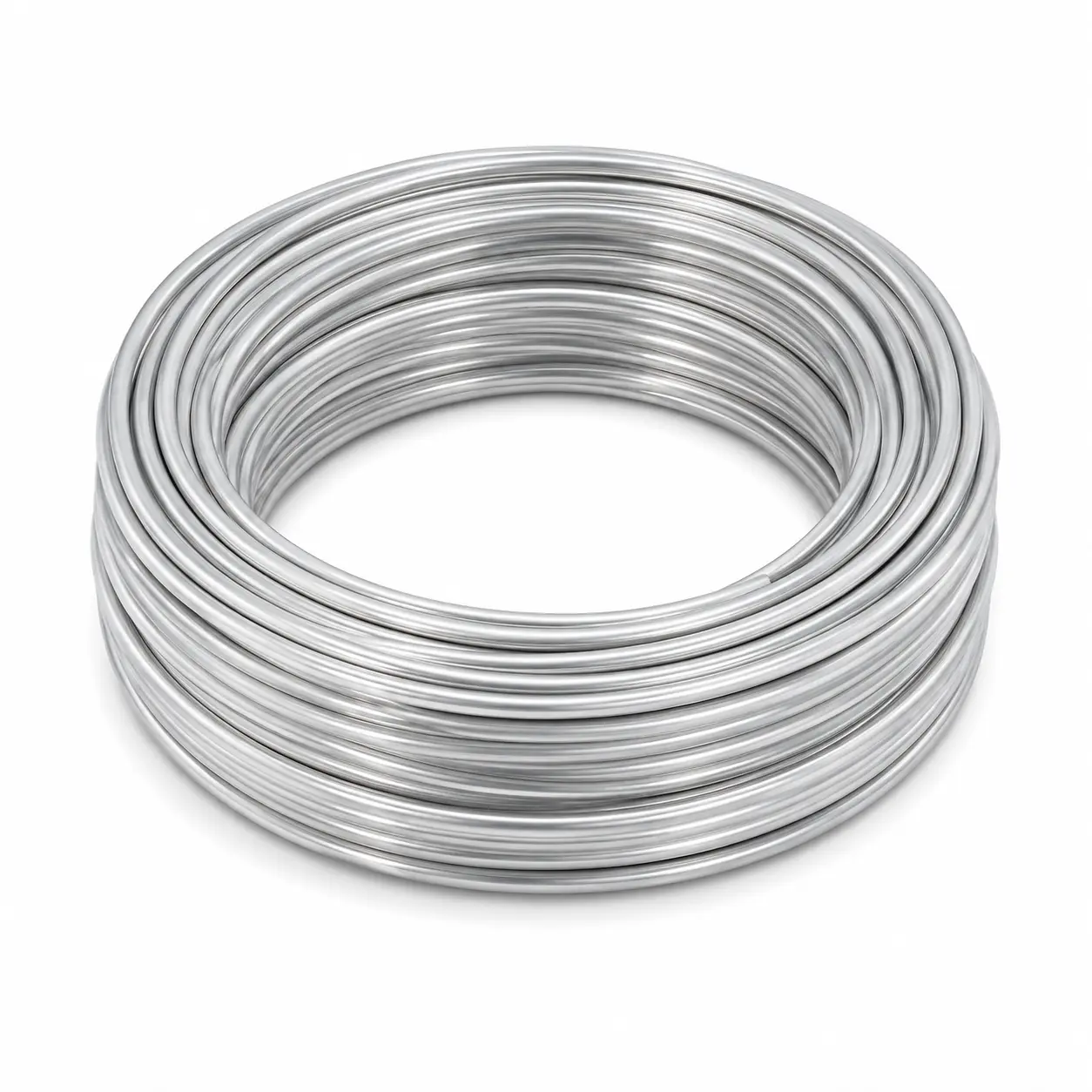

Solid Aluminium Conductor

Solid EC-grade aluminium conductors for earthing and bonding applications requiring lightweight construction. Suitable for down-conductor runs, grid connections, and solar structure earthing.

Key Specifications

Material EC Grade Aluminium

Cross-section 16, 25, 35, 50 mm²

Standard IS 3043, IEC 60228

Applications

Down Conductors Solar Earthing Grid Connections Bonding

Accessory

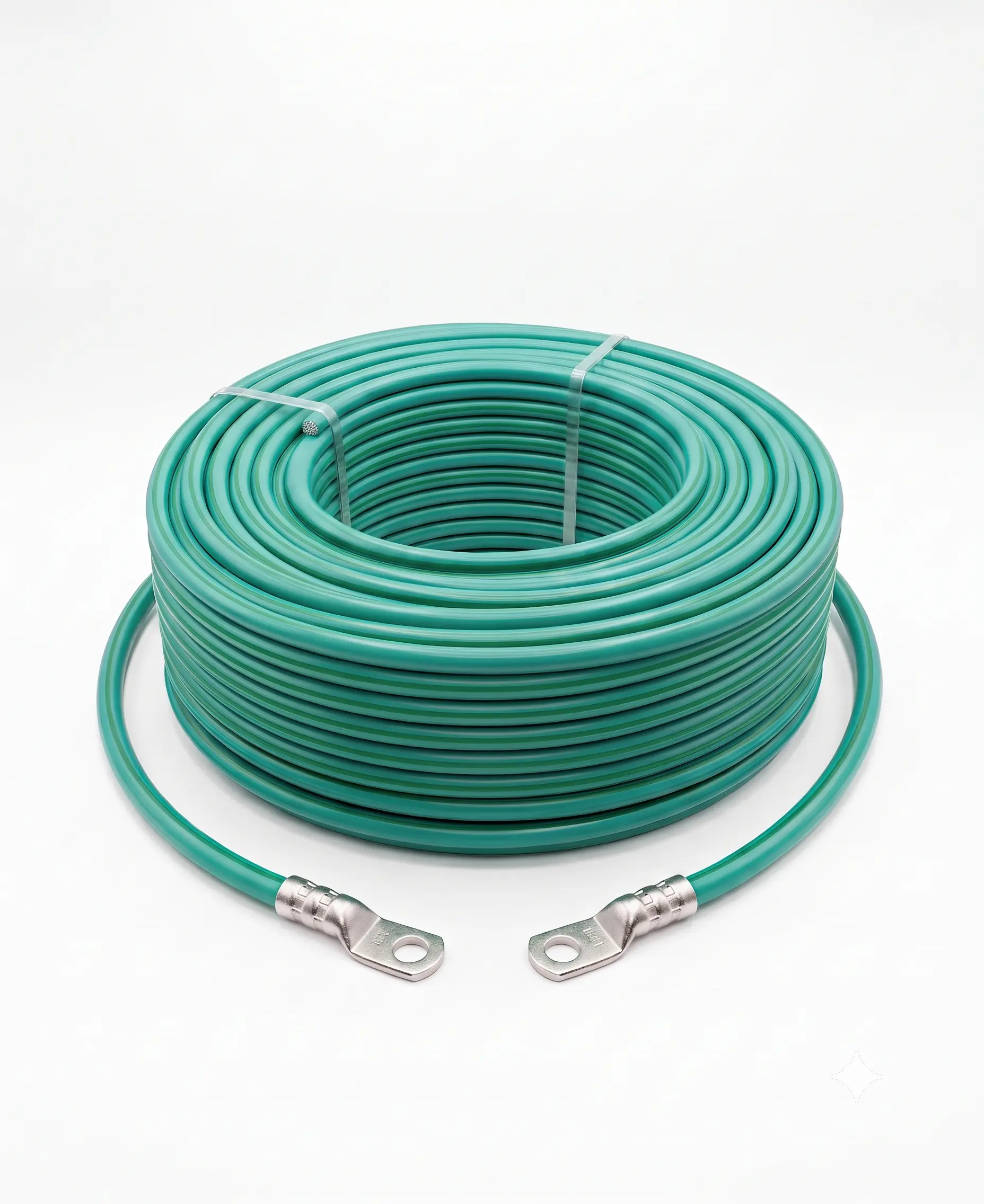

Aluminium Green Earthing Cable

Green-sleeved aluminium earthing cable for easy identification of earth conductors per IEC and IS colour coding requirements. Flexible stranded construction for ease of installation.

Key Specifications

Material Aluminium / Green PVC sleeve

Cross-section 16, 25, 35, 50, 70 mm²

Standard IS 694, IEC 60228

Applications

Panel Earthing Equipment Bonding Solar Systems MDB Wiring

Lightning Protection

Lightning Protection Systems

ESE and conventional lightning arresters, air terminals, and strike counters engineered to IEC 62561 standards.

Advanced Tech

ESE Technology

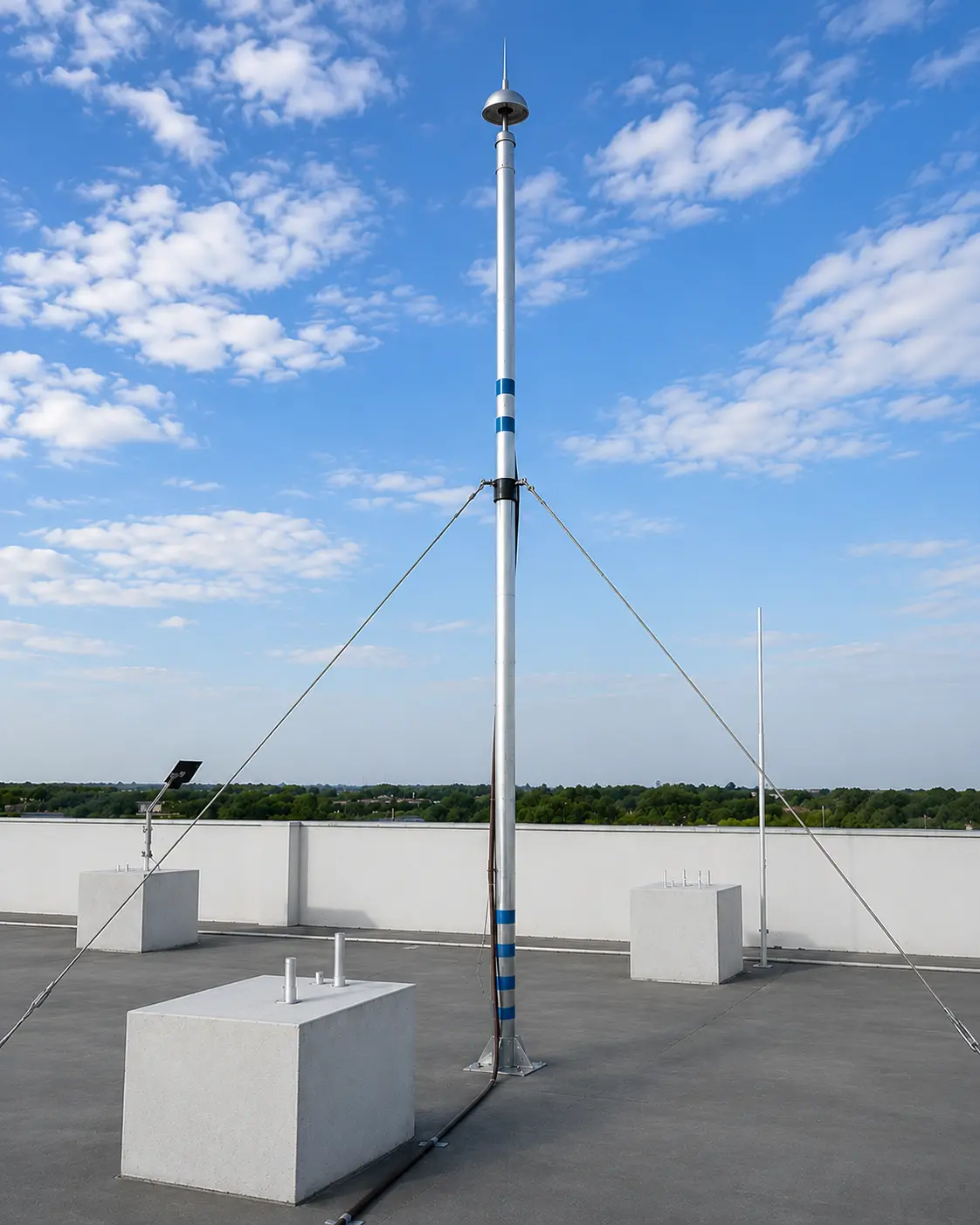

ESE Lightning Arrester

Early Streamer Emission (ESE) air terminal with a built-in triggering mechanism that emits an upward leader significantly earlier than conventional rods, delivering a substantially larger protection radius from a single installation point.

Key Specifications

Advance Time ΔT 25 µs – 60 µs (model dependent)

Protection Radius Up to 107 m (Level I)

Material Stainless steel 316L

Standard NFC 17-102, UNE 21186, IEC 62305

Applications

Large Structures Open Areas Airports Sports Arenas

Lightning Protection

Conventional Lightning Arrester

Passive copper air termination rods and masts that intercept lightning strikes and safely conduct energy to the earth system. Simple, maintenance-free technology compliant with IEC 62305 Part 3 risk assessment.

Key Specifications

Material Stainless steel / Copper

Height 300 mm to 2000 mm

Protection Radius Per IEC 62305-3 Rolling Sphere

Standard IEC 62305, IS 2309

Applications

Buildings Industrial Chimneys Storage Tanks Communication Masts

Lightning Protection

Lightning Air Terminal

Stainless steel and copper air terminals designed to intercept direct lightning strikes and channel surge energy safely to the earth system. Compliant with IEC 62305 and available in various heights.

Key Specifications

Material SS 316 / Copper

Height 300 mm to 2000 mm

Diameter 16 mm, 20 mm

Standard IEC 62305-3, IS 2309

Applications

Buildings Telecom Towers Industrial Chimneys Storage Tanks

Lightning Protection

Lightning Strike Counter

Electronic lightning strike counter installed in-line on the down conductor to record the number of lightning discharges to the LPS. Provides essential data for maintenance scheduling and IEC 62305 inspection compliance.

Key Specifications

LPL Levels I, II, III, IV

Air Terminal SS / Copper rod & tape

Down Conductor 50 mm² copper / Al tape

Standard IEC 62305-1/2/3/4, IS 2309

Applications

Residential Commercial Heritage Structures Industrial Plants

Lightning Protection

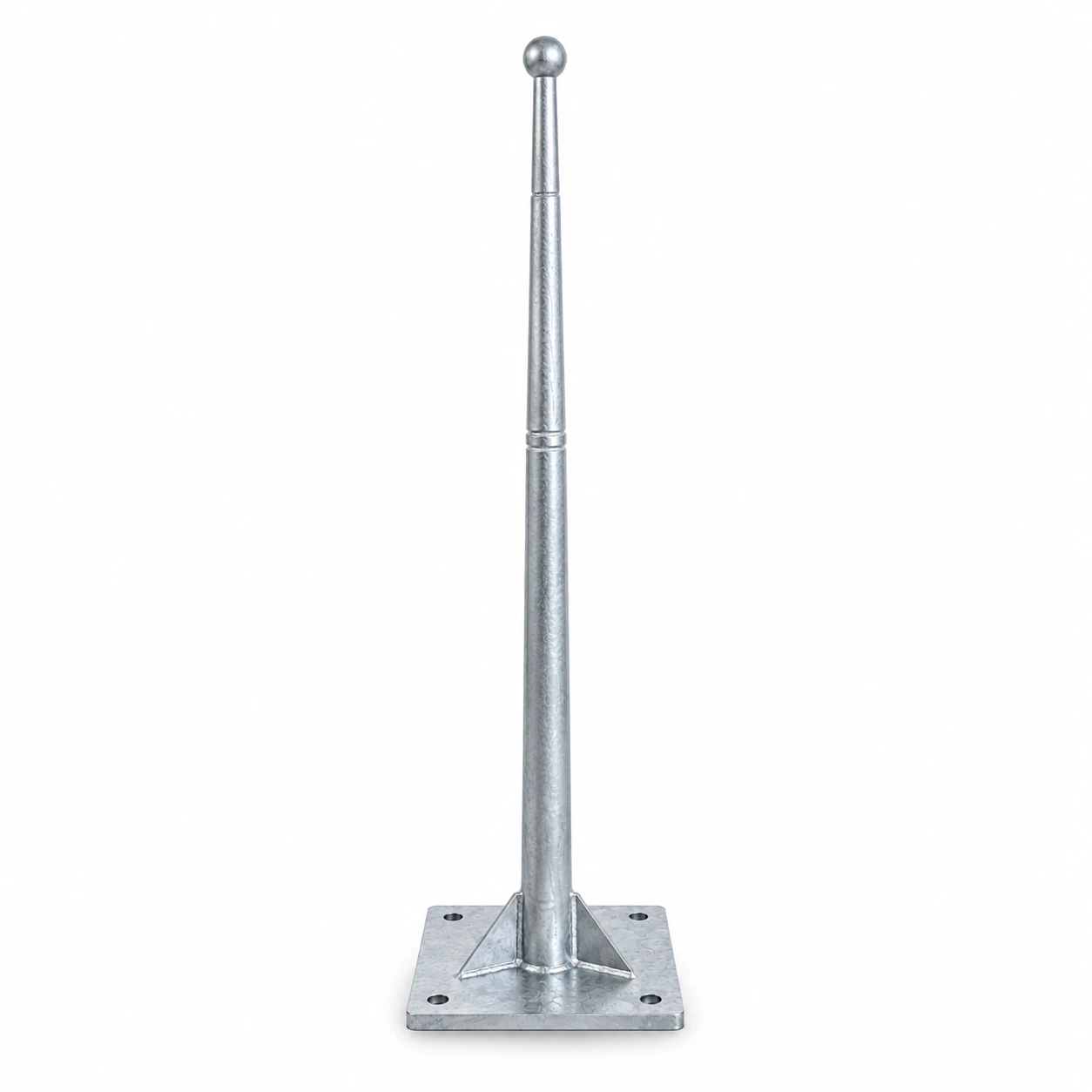

High Mast Lightning Pole

Heavy-duty galvanised steel high mast poles for mounting lightning air terminals at elevation to achieve wide area protection. Designed for open yards, substations, stadiums, and large industrial facilities.

Key Specifications

Height 6 m, 9 m, 12 m, 18 m

Material Hot-dip galvanised steel

Mounting Flange / Embedded base

Standard IEC 62305-3, IS 2309

Applications

Open Yards Substations Stadiums Oil & Gas

Solar Products

Solar Earthing & Connectors

Solar panels, connectors, and DCDB/ACDB boxes engineered for safe and efficient solar installations.

Critical Infra

Solar Accessory

MC4 Solar Connector

Industry-standard MC4 solar connectors for photovoltaic string and array wiring. IP67-rated weatherproof and UV-resistant design for outdoor DC installations. Compatible with 4 mm² and 6 mm² solar cables and all major inverter brands.

Key Specifications

Type MC4 male & female pair

Cable Range 4 mm², 6 mm²

IP Rating IP67 waterproof

Standard IEC 62852, TÜV certified

Applications

Rooftop Solar Solar Parks Grid-Tied Systems Off-Grid Systems

Solar Product

Solar ACDB Box

AC Distribution Box (ACDB) for solar PV systems, housing AC protection devices, surge protection, and metering connections between solar inverters and the utility grid. Built for outdoor IP65+ environments.

Key Specifications

Type AC Distribution Box

Protection IP65 rated

Includes MCB, SPD, surge protection

Standard IEC 61439, IS 8623

Applications

Rooftop Solar Solar Parks Grid-Tied Systems Industrial Solar

Solar Product

Solar DCDB Box

DC Distribution Box (DCDB) combining multiple PV string inputs and providing DC overcurrent and surge protection before the inverter. Essential for safe and efficient solar array wiring.

Key Specifications

Type DC Distribution Box

Protection IP65 rated

Includes DC fuses, surge arrester

Standard IEC 61439, IEC 60269

Applications

Rooftop Solar Utility Scale Ground Mount Carport Solar

Solar Product

Net Meter

Bi-directional energy meter for grid-tied solar systems measuring both import and export energy. Enables net metering settlements with utilities and supports solar feed-in tariff programmes.

Key Specifications

Type Bi-directional energy meter

Accuracy Class 1 / Class 0.5S

Communication RS485 / Modbus RTU

Standard IS 16444, IEC 62053

Applications

Grid-Tied Solar Net Metering Rooftop Systems Feed-In Tariff

Solar Panel

550W Solar Panel

High-efficiency 550W monocrystalline solar panel for residential and commercial rooftop installations. Features anti-reflective glass and robust aluminium frame for long-term outdoor performance.

Key Specifications

Power Output 550W (STC)

Cell Type Monocrystalline PERC

Efficiency Up to 21.3%

Standard IEC 61215, IEC 61730

Applications

Rooftop Solar Residential Commercial Ground Mount

Solar Panel

680W Solar Panel

High-power 680W bifacial solar panel for utility-scale and large commercial installations. Bifacial design captures reflected light for increased energy yield and improved ROI in open-ground and carport configurations.

Key Specifications

Power Output 680W (STC)

Cell Type Bifacial Monocrystalline

Efficiency Up to 21.8%

Standard IEC 61215, IEC 61730

Applications

Utility Scale Ground Mount Carport Solar Industrial

Solar Panel

725W Solar Panel

Ultra-high-power 725W TOPCon solar panel delivering industry-leading efficiency for large-scale solar parks and industrial rooftops. Advanced cell technology ensures minimal degradation and a 25-year performance guarantee.

Key Specifications

Power Output 725W (STC)

Cell Type TOPCon Monocrystalline

Efficiency Up to 22.5%

Standard IEC 61215, IEC 61730

Applications

Solar Parks Industrial Rooftops Floating Solar Agri-Solar

Installation Services

Professional Installation Services

End-to-end installation, testing, and commissioning services delivered by certified earthing engineers.

Installation Service

Earthing Electrode Installation

Professional installation of copper bonded, pure copper, and GI earthing electrodes including soil testing, electrode selection, and post-installation resistance verification to IS 3043 standards.

Service Includes

Scope Soil test, install, verify

Standard IS 3043, IEEE 80

Deliverable Test report & compliance cert

Applications

Industrial Plants Commercial Buildings Substations Data Centres

Installation Service

Earth Pit Installation Services

Complete earth pit construction including excavation, electrode placement, backfill compounding, chamber fitting, and resistance testing. Suitable for chemical, copper, and GI electrode systems.

Service Includes

Scope Excavation to test report

Standard IS 3043

Deliverable Pit test report & warranty

Applications

Residential Commercial Industrial Infrastructure

Installation Service

Earthing Strip Installation Services

Professional installation of copper and GI earthing strips for earth grids, perimeter bonding, and structural connections. Includes strip routing, jointing, and final grid resistance measurement.

Service Includes

Scope Strip install & jointing

Standard IS 3043, IEC 62561

Deliverable Grid test report

Applications

Substations Switchyards Industrial Plants Solar Farms

Installation Service

Earth Pit Testing Service

Calibrated earth resistance testing using fall-of-potential and clamp-on methods. Provides traceable measurement reports for IS 3043 compliance, insurance, and regulatory submissions.

Service Includes

Methods Fall-of-potential, clamp-on

Standard IS 3043, IEEE 81

Deliverable Calibrated test report

Applications

Annual Audits New Installations Insurance Reports Regulatory Compliance

Installation Service

ESE Lightning Arrester Installation Services

Complete ESE lightning protection system installation including site survey, risk assessment per IEC 62305, mast erection, down-conductor routing, and earth termination with final commissioning report.

Service Includes

Scope Survey to commissioning

Standard IEC 62305, NFC 17-102

Deliverable LPS design report & cert

Applications

Large Structures Airports Sports Arenas Industrial Facilities

Industrial-Grade Earthing & Protection

Copper Bonded Earthing Electrode

GI Earthing Electrode

Pure Copper Earthing Electrode

T-Type Copper Earthing Electrode

Copper Bonded Earthing Rod

GI Earthing Electrode Set

Pure Copper Earthing Plate

Aluminium Earthing Plate

Copper Plate Earthing Kit

Advanced Backfill Compound

Earth Pit Chamber

RCC Earth Pit Chamber

Cast Iron Earth Pit Cover

Earth Pit Identification Plate

Copper Strip

GI Strip

Aluminium Strip

Copper Busbar

Aluminium Busbar

Earthing Insulator

Earthing Sleeve

Earthing Kit

Pipe Saddle Clamp

Pipe Saddle Clamp Kit

Aluminium Conductor Clamp

Stainless Steel U-Bolt Clamp

Solid Aluminium Conductor

Aluminium Green Earthing Cable

ESE Lightning Arrester

Conventional Lightning Arrester

Lightning Air Terminal

Lightning Strike Counter

High Mast Lightning Pole

MC4 Solar Connector

Solar ACDB Box

Solar DCDB Box

Net Meter

550W Solar Panel

680W Solar Panel

725W Solar Panel

Earthing Electrode Installation

Earth Pit Installation Services

Earthing Strip Installation Services

Earth Pit Testing Service

ESE Lightning Arrester Installation Services

Ready to Specify the Right Earthing Solution?

Industrial-Grade
Earthing & Protection

Ready to Specify the Right
Earthing Solution?
